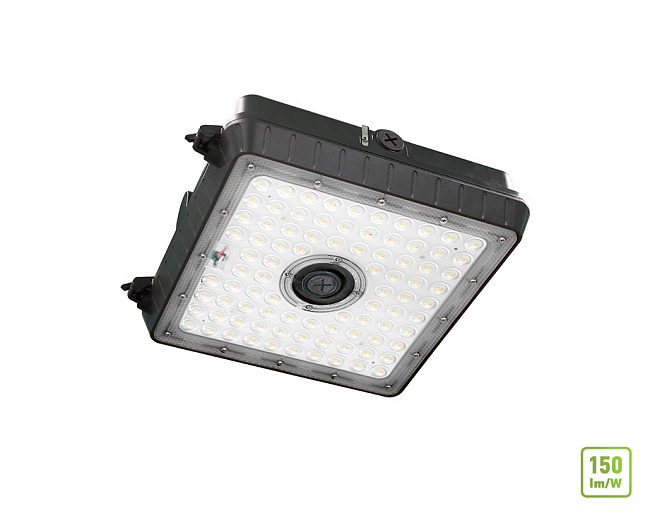

CAN07

DESIGN. LED LOW-PROFILE CANOPY has a die-cast aluminum housing with excellent heat dissipation and anti-glare PC lens with even light distribution. It is equipped with a removable hinge door for quick and easy wiring. It is designed to operate on 120-277V circuits with a 1-10V dimmable driver.

VARIETY: The fixture is available in Black or White finishes

COLOR SELECTABLE. You can choose either a 3000K warm white, 4000K cool white or 5000K daylight color temperature.

Surge protection 6kV protects the fixture from voltage spikes and current surges.

INSTALLATION. The fixture is Wet locations rated and can be either surface mounted or pole mounted. Perfect commercial or industrial solution for parking garages, gas stations, stairwells, passageways, underpasses, and many other applications.

ADVANTAGES: With calculated lifespan up to 150 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

AVAILABLE FINISHES:
  • Die-cast aluminum housing with excellent heat dissipation
  • Anti-glare PC lens with even light distribution
  • 3 color temperature options
  • Surge protection against voltage and current surges
Available
Power
45W, 70W
Color
temperature
3CCT
DOWNLOADS:

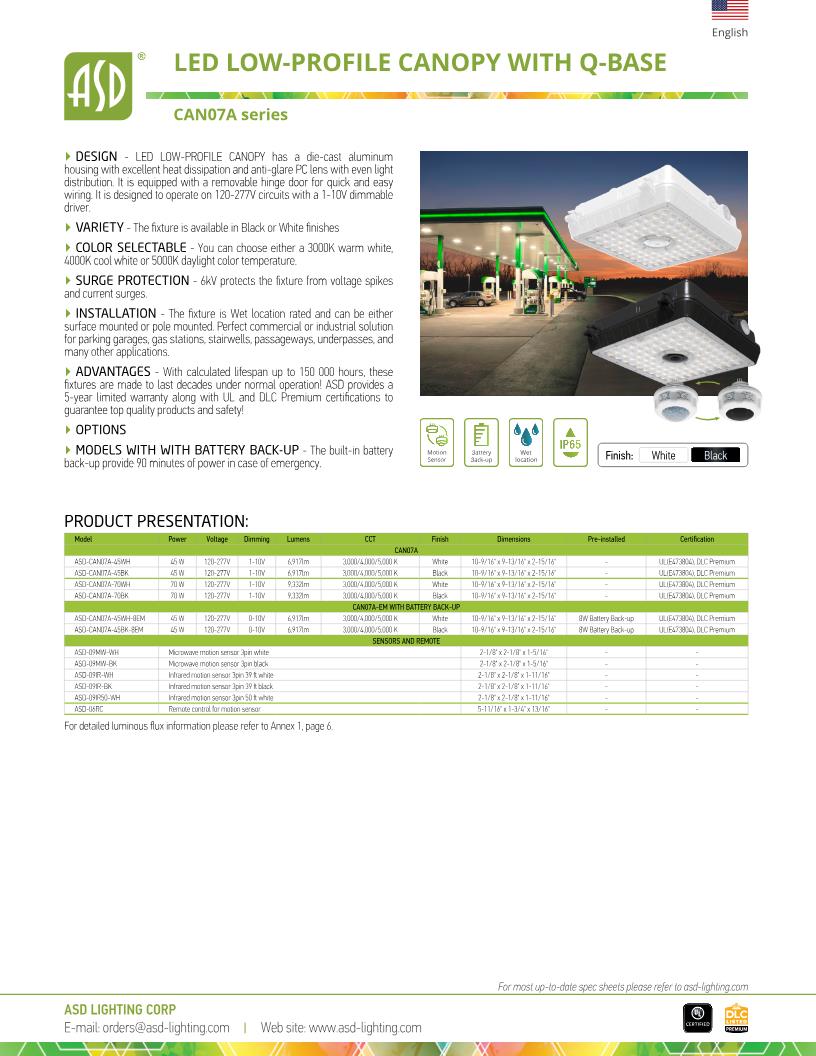

Cut Sheet

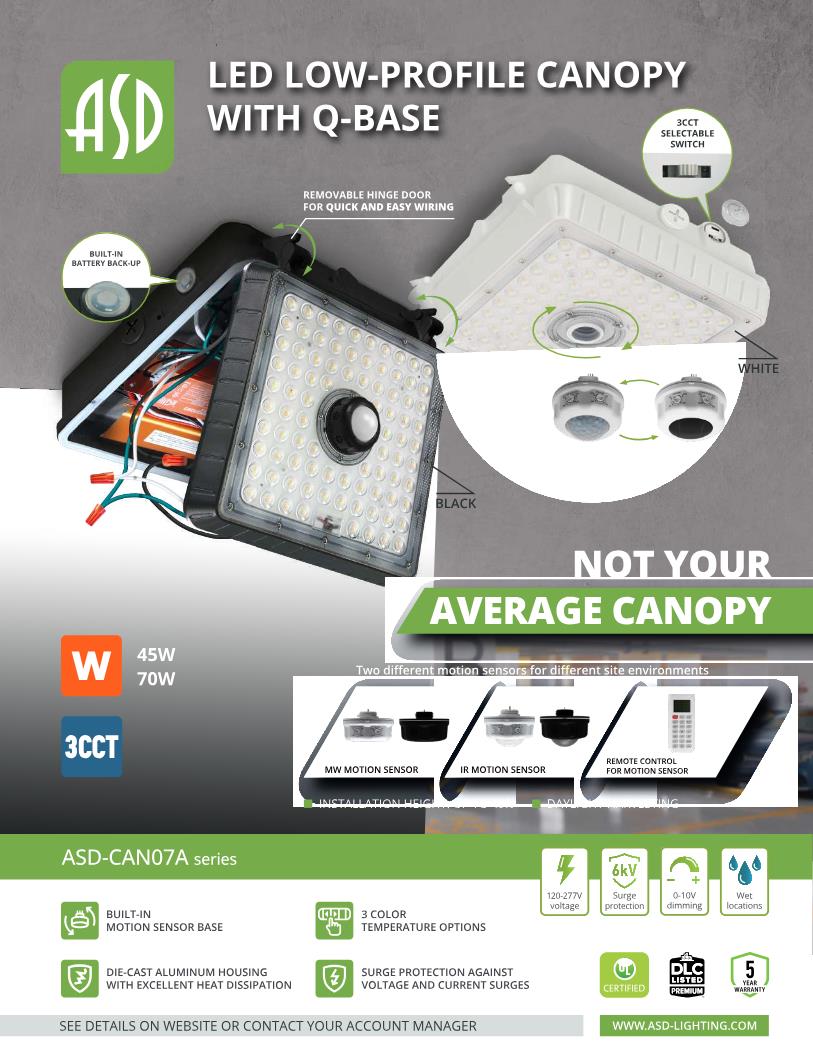

Product Flyer
UL DLC up to 5 year warranty
Finish
All
Black
White
Wattage
All
45
70
Voltage
All
120-277
ASD LED Low-Profile Canopy with Q-base 45W 120-277V 0-10V Dimmable 140Lm/W 3000/4000/5000K Black UL DLC Premium
ASD-CAN07A-45BK
Finish
Black
Voltage
120-277
Power
45
Luminous Flux
6230 / 6917 / 6900
Dimming
Y
Color Temperature
3000 / 4000 / 5000
Quick view
ASD LED Low-Profile Canopy with Q-base 70W 120-277V 0-10V Dimmable 140Lm/W 3000/4000/5000K White UL DLC Premium
ASD-CAN07A-70WH
Finish
White
Voltage
120-277
Power
70
Luminous Flux
8381 / 9332 / 8945
Dimming
Y
Color Temperature
3000 / 4000 / 5000
Quick view
ASD LED Low-Profile Canopy with Q-base 45W 120-277V 0-10V Dimmable 140Lm/W 3000/4000/5000K with Battery Back-up 8W Black UL DLC Premium
ASD-CAN07A-45BK-8EM
Finish
Black
Voltage
120-277
Power
45
Luminous Flux
6230 / 6917 / 6900
Dimming
Y
Color Temperature
3000 / 4000 / 5000
Quick view
ASD LED Low-Profile Canopy with Q-base 70W 120-277V 0-10V Dimmable 140Lm/W 3000/4000/5000K Black UL DLC Premium
ASD-CAN07A-70BK
Finish
Black
Voltage
120-277
Power
70
Luminous Flux
8381 / 9332 / 8945
Dimming
Y
Color Temperature
3000 / 4000 / 5000
Quick view
ASD LED Low-Profile Canopy with Q-base 45W 120-277V 0-10V Dimmable 140Lm/W 3000/4000/5000K White UL DLC Premium
ASD-CAN07A-45WH
Finish
White
Voltage
120-277
Power
45
Luminous Flux
6230 / 6917 / 6900
Dimming
Y
Color Temperature
3000 / 4000 / 5000
Quick view
ASD LED Low-Profile Canopy with Q-base 45W 120-277V 0-10V Dimmable 140Lm/W 3000/4000/5000K with Battery Back-up 8W White UL DLC Premium
ASD-CAN07A-45WH-8EM
Finish
White
Voltage
120-277
Power
45
Luminous Flux
6230 / 6917 / 6900
Dimming
Y
Color Temperature
3000 / 4000 / 5000
Quick view
ASD Infrared motion sensor 3pin 39ft dim 0-10V IP65 RC Black UL
ASD-09IR-BK
Finish
Black
Voltage
12
Power
0,36
Dimming
Y
ASD Infrared motion sensor 3pin 39ft dim 0-10V IP65 RC White UL
ASD-09IR-WH
Finish
White
Voltage
12
Power
0,36
Dimming
Y
ASD Infrared motion sensor NLS 3pin 39ft dim 0-10V IP65 APP White UL DLC NLC
ASD-09IR-NLS-WH
Finish
White
Voltage
12
Power
0,6
Dimming
Y
ASD Microwave motion sensor 3pin 49ft dim 0-10V IP65 RC Black UL
ASD-09MW-BK
Finish
Black
Voltage
12
Power
0,36
Dimming
Y
ASD Microwave motion sensor 3pin 49ft dim 0-10V IP65 RC White UL
ASD-09MW-WH
Finish
White
Voltage
12
Power
0,36
Dimming
Y
ASD Microwave motion sensor NLS 3pin 49ft dim 0-10V IP65 APP White UL DLC NLC
ASD-09MW-NLS-WH
Finish
White
Voltage
12
Power
0,6
Dimming
Y
ASD Remote control for Motion Sensor
ASD-06RC
Finish
White
