JBR D

DESIGN. LED ROUND RECESSED MINI PANEL with a classic, low-profile design is an ideal solution for low ceilings. This fixture has a J-box, plug & twist connector, spring-loaded clips, and requires only 2" of ceiling space, making the installation process quick and easy. The acrylic lens with a 110° beam angle and CRI90+ grants you even light. It is designed to operate on 120V circuits.

COLOR SELECTABLE. You can choose either a 2700K soft white, 3000K warm white, 3500K neutral white, 4000K cool white, or 5000K daylight color temperature.

DIMMING. Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.

INSTALLATION. This fixture is IC rated so there is no can or any other housing required. It is also Wet Locations rated, making it perfect for kitchen, bathroom or any other common areas.

ADVANTAGES: With a lifespan of 54,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and Energy Star certifications to guarantee top quality products and safety!

AVAILABLE FINISHES:

Low-profile design is an ideal solution for low ceilings
CRI90+ Rich and natural colors
5 color temperature options
IC rated canless solution

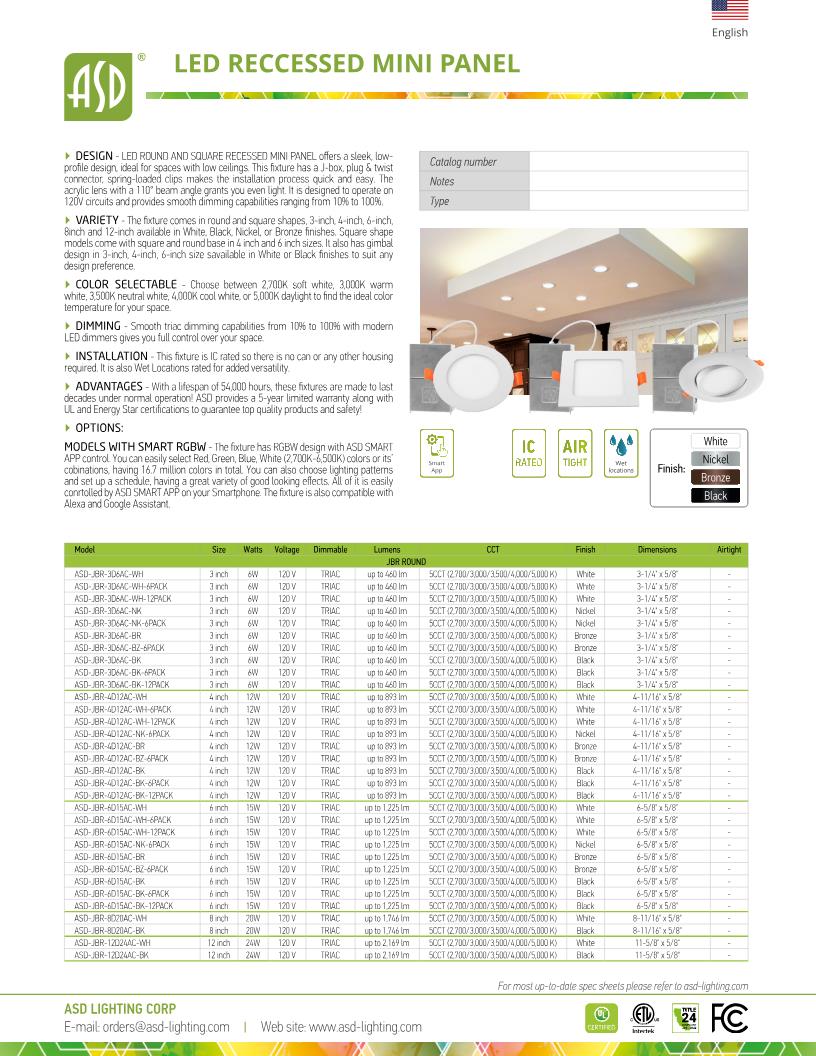

DOWNLOADS:

ETL

T24

5 year warranty

Finish

All

Nickel

White

Black

Bronze

Wattage

All

15

12

9

20

24

6

9 / 12 / 15

Voltage

All

120

ASD LED Round Recessed Mini Panel 6" 15W 120V Dimmable CCT Selectable 2700/3000/3500/4000/5000K Brushed Nickel UL Energy Star 6pack

ASD-JBR-6D15AC-NK-6PACK

UPC 81005073840
Certification UL / ES
Finish Nickel
Material Aluminum, PC
Voltage 120
Power 15
Luminous Flux 1100 / 1137 / 1225 / 1153 / 1094

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
IP IP43
Warranty 5
Dimensions DxH 6 5/8 x 6 5/8 x 5/8

ASD LED Round Recessed Mini Panel 4" 12W 120V Dimmable CCT Selectable 2700/3000/3500/4000/5000K Brushed Nickel UL Energy Star 6pack

ASD-JBR-4D12AC-NK-6PACK

UPC 81005073839
Certification UL
Finish Nickel
Material Aluminum, PC
Voltage 120
Power 12
Luminous Flux 780 / 839 / 893 / 861 / 860

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
IP IP43
Warranty 5
Dimensions DxH 4 11/16 x 4 11/16 x 5/8

Downloads

IES

IES (PDF)

ASD LED Recessed Mini Panel Round 6inch 15W 120V Triac 2700/3000/3500/4000/5000K White UL Energy Star

ASD-JBR-6D15AC-WH

UPC 81005073911
Certification UL / ES
Finish White
Material Aluminum, PC
Voltage 120
Power 15
Luminous Flux 1272 / 1308 / 1378 / 1340 / 1287

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
IP IP43
Warranty 5
Dimensions DxH 6 5/8 x 6 5/8 x 5/8

ASD LED Round Wafer Recessed Mini Panel 4" 9W 120V Dimmable CCT Selectable 2700/3000/3500/4000/5000K Black Energy Star ETL T24 JA8 6pack

ASD-JBR-4D9BK-6P

UPC 81019020014
Certification ETL / ES
Finish Black
Material Aluminum, PC
Voltage 120
Power 9

Luminous Flux 684 / 765 / 816 / 831 / 754
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
Warranty 5
Dimensions DxH 4 15/16 x 4 15/16 x 7/8

ASD LED Recessed Mini Panel Round 8inch 20W 120V Triac 2700/3000/3500/4000/5000K Black UL

ASD-JBR-8D20AC-BK

UPC 81005073748
Certification UL
Finish Black
Material Aluminum, PC
Voltage 120
Power 20
Luminous Flux 1600 / 1650 / 1688 / 1746 / 1633

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
IP IP43
Warranty 5
Dimensions DxH 8 11/16 x 8 11/16 x 5/8

ASD LED Recessed Mini Panel Round 8inch 20W 120V Triac 2700/3000/3500/4000/5000K White UL

ASD-JBR-8D20AC-WH

UPC 81005073747
Certification UL
Finish White
Material Aluminum, PC
Voltage 120
Power 20
Luminous Flux 1600 / 1650 / 1688 / 1746 / 1633

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
IP IP43
Warranty 5
Dimensions DxH 8 11/16 x 8 11/16 x 5/8

ASD LED Recessed Mini Panel Round 12inch 24W 120V Triac 2700/3000/3500/4000/5000K Black UL

ASD-JBR-12D24AC-BK

UPC 81005073750
Certification UL
Finish Black
Material Aluminum, PC
Voltage 120
Power 24
Luminous Flux 1950 / 2142 / 2138 / 2169 / 2077

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
IP IP43
Warranty 5
Dimensions DxH 11 5/8 x 11 5/8 x 5/8

ASD LED Recessed Mini Panel Round 3inch 6W 120V Triac 2700/3000/3500/4000/5000K White UL Energy Star

ASD-JBR-3D6AC-WH

UPC 81005073904
Certification UL / ES
Finish White
Material Aluminum, PC
Voltage 120
Power 6
Luminous Flux 510 / 516 / 519 / 514 / 538

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
IP IP43
Warranty 5
Dimensions DxH 3 1/4 x 3 1/4 x 5/8

ASD LED Recessed Mini Panel Round 3inch 6W 120V Triac 2700/3000/3500/4000/5000K White UL Energy Star 12pack

ASD-JBR-3D6AC-WH-12PACK

UPC 81012811644
Certification UL / ES
Finish White
Material Aluminum, PC
Voltage 120
Power 6
Luminous Flux 510 / 516 / 519 / 514 / 538

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
IP IP43
Warranty 5
Dimensions DxH 3 1/4 x 3 1/4 x 5/8

ASD LED Recessed Mini Panel Round 4inch 12W 120V Triac 2700/3000/3500/4000/5000K Bronze UL

ASD-JBR-4D12AC-BR

UPC 81012811508
Certification UL
Finish Bronze
Material Aluminum, PC
Voltage 120
Power 12
Luminous Flux 780 / 839 / 893 / 861 / 860

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
IP IP43
Warranty 5
Dimensions DxH 4 11/16 x 4 11/16 x 5/8

ASD LED Recessed Mini Panel Round 6inch 15W 120V Triac 2700/3000/3500/4000/5000K Black UL Energy Star

ASD-JBR-6D15AC-BK

UPC 81005073912
Certification UL / ES
Finish Black
Material Aluminum, PC
Voltage 120
Power 15

Luminous Flux 1272 / 1308 / 1378 / 1340 / 1287
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
Warranty 5
Dimensions DxH 6 5/8 x 6 5/8 x 5/8

ASD LED Recessed Mini Panel Round 6inch 15W 120V Triac 2700/3000/3500/4000/5000K Black UL Energy Star 12pack

ASD-JBR-6D15AC-BK-12PACK

UPC 81012811650
Certification UL / ES
Finish Black
Material Aluminum, PC
Voltage 120
Power 15
Luminous Flux 1272 / 1308 / 1378 / 1340 / 1287

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
IP IP43
Warranty 5
Dimensions DxH 6 5/8 x 6 5/8 x 5/8

ASD LED Wafer Round 6inch 9/12/15W 120V Triac 2700K/3000K/3500K/4000K/5000K with Battery Back-up 4,2W White ETL Energy Star

ASD-JBR-6D15WH-EM

UPC 81012811932
Certification ETL / ES
Finish White
Material Aluminum
Voltage 120
Power 9 / 12 / 15

Luminous Flux 1272 / 1308 / 1378 / 1340 / 1287
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
Warranty 5
Dimensions DxH 6 5/8 x 6 5/8 x 3/4

ASD LED Round Wafer Recessed Mini Panel 6" 12W 120V Dimmable CCT Selectable 2700/3000/3500/4000/5000K Black Energy Star ETL T24 JA8 6pack

ASD-JBR-6D12BK-6P

UPC 81019020017
Certification ETL / ES
Finish Black
Material Aluminum, PC
Voltage 120
Power 12

Luminous Flux 909 / 955 / 1035 / 1040 / 987
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
Warranty 5
Dimensions DxH 6 7/8 x 6 7/8 x 15/16

ASD LED Round Wafer Recessed Mini Panel 4" 9W 120V Dimmable CCT Selectable 2700/3000/3500/4000/5000K White Energy Star ETL T24 JA8 6pack

ASD-JBR-4D9WH-6P

UPC 81019020016
Certification ETL / ES
Finish White
Material Aluminum, PC
Voltage 120
Power 9

Luminous Flux 684 / 765 / 816 / 831 / 754
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
Warranty 5
Dimensions DxH 4 15/16 x 4 15/16 x 7/8

ASD LED Round Wafer Recessed Mini Panel 6" 12W 120V Dimmable CCT Selectable 2700/3000/3500/4000/5000K White Energy Star ETL T24 JA8 6pack

ASD-JBR-6D12WH-6P

UPC 81019020019
Certification ETL / ES
Finish White
Material Aluminum, PC
Voltage 120
Power 12

Luminous Flux 909 / 955 / 1035 / 1040 / 987
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Wet
Warranty 5
Dimensions DxH 6 7/8 x 6 7/8 x 15/16
