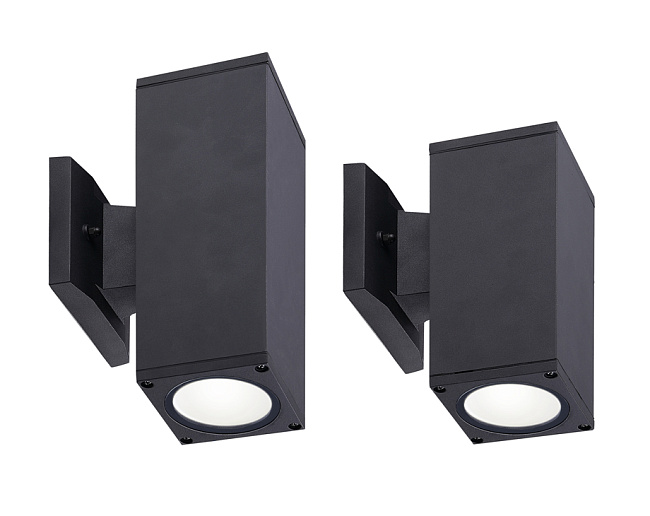

LCLS

AVAILABLE FINISHES:

DOWNLOADS:

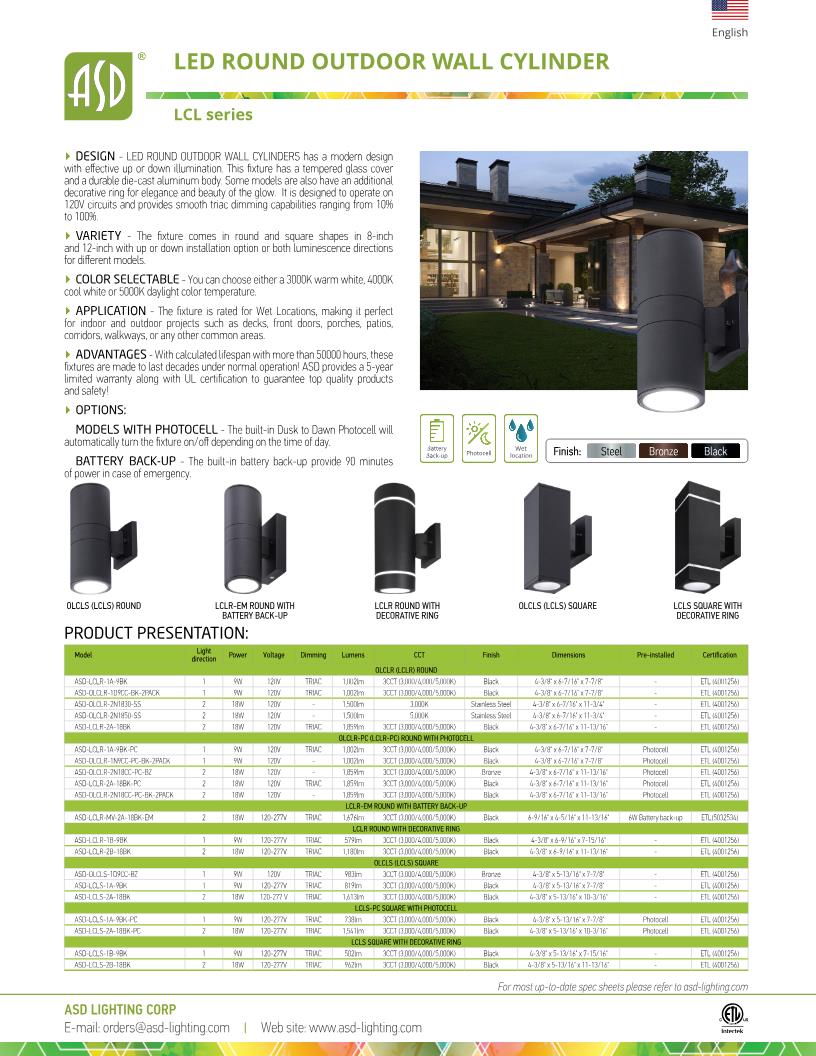

Cut Sheet

Finish

All

Black

Wattage

All

Voltage

All

120-277

ASD-LCLS-1A-9BK

Finish: Black
Voltage: 120-277
Power: 9
Luminous Flux: 716 / 819 / 782
Dimming: Y
Color Temperature: 3000 / 4000 / 5000

ASD LED Square 2-sides Outdoor Wall Cylinder 18W 120-277V Triac 3000/4000/5000K Black ETL

ASD-LCLS-2A-18BK

Finish: Black
Voltage: 120-277
Power: 18
Luminous Flux: 1392 / 1613 / 1550
Dimming: Y
Color Temperature: 3000 / 4000 / 5000

ASD LED Outdoor Wall Cylinder Square Up or Down 9W 120V Triac 3000/4000/5000K with Photocell Black ETL

ASD-LCLS-1A-9BK-PC

Finish: Black
Voltage: 120-277
Power: 9
Luminous Flux: 630 / 738 / 708
Dimming: N
Color Temperature: 3000 / 4000 / 5000

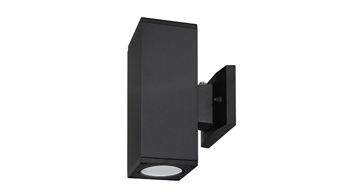

ASD LED Square 2-sides Outdoor Wall Cylinder with Photocell 18W 120V Triac 3000/4000/5000K Black ETL

ASD-LCLS-2A-18BK-PC

Finish: Black
Voltage: 120-277
Power: 18
Luminous Flux: 1352 / 1541 / 1502
Dimming: N
Color Temperature: 3000 / 4000 / 5000

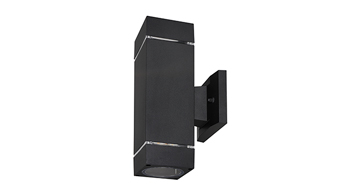

ASD LED Outdoor Wall Cylinder Square Up and Down with 2 Rings 18W 120-277V Triac 3000/4000/5000K Black ETL

ASD-LCLS-2B-18BK

Finish: Black
Voltage: 120-277
Power: 18
Luminous Flux: 831 / 962 / 918
Dimming: Y
Color Temperature: 3000 / 4000 / 5000

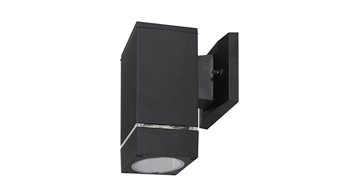

ASD LED Outdoor Wall Cylinder Square Up or Down with 1 Ring 9W 120-277V Triac 3000/4000/5000K Black ETL

ASD-LCLS-1B-9BK

Finish: Black
Voltage: 120-277
Power: 9
Luminous Flux: 434 / 502 / 482
Dimming: Y
Color Temperature: 3000 / 4000 / 5000

ASD-LCLS-1A-9BK

UPC 81012811813
Certification ETL
Finish Black
Material Aluminum, Glass
Voltage 120-277
Power 9

Luminous Flux 716 / 819 / 782
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 5 13/16 x 4 3/8 x 7 7/8

Downloads

IES (PDF)

IES

ASD-LCLS-2A-18BK

UPC 81012811814
Certification ETL
Finish Black
Material Aluminum, Glass
Voltage 120-277
Power 18

Luminous Flux 1392 / 1613 / 1550
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 5 13/16 x 4 3/8 x 10 3/16

Downloads

IES (PDF)

IES

ASD-LCLS-1A-9BK-PC

UPC 81012811815
Certification ETL
Finish Black
Material Aluminum, Glass
Voltage 120-277
Power 9

Luminous Flux 630 / 738 / 708
Dimming N
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 5 13/16 x 4 3/8 x 7 7/8

Downloads

IES (PDF)

IES

ASD-LCLS-2A-18BK-PC

UPC 81012811816
Certification ETL
Finish Black
Material Aluminum, Glass
Voltage 120-277
Power 18

Luminous Flux 1352 / 1541 / 1502
Dimming N
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 5 13/16 x 4 3/8 x 10 3/16

Downloads

IES (PDF)

IES

ASD-LCLS-2B-18BK

UPC 81012811817
Certification ETL
Finish Black
Voltage 120-277
Power 18
Luminous Flux 831 / 962 / 918

Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 5 13/16 x 4 3/8 x 11 13/16

Downloads

IES

IES (PDF)

ASD-LCLS-1B-9BK

UPC 81012811819
Certification ETL
Finish Black
Material Aluminum, Glass, PC
Voltage 120-277
Power 9

Luminous Flux 434 / 502 / 482
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 5 13/16 x 4 3/8 x 7 15/16

Downloads

IES (PDF)

IES
