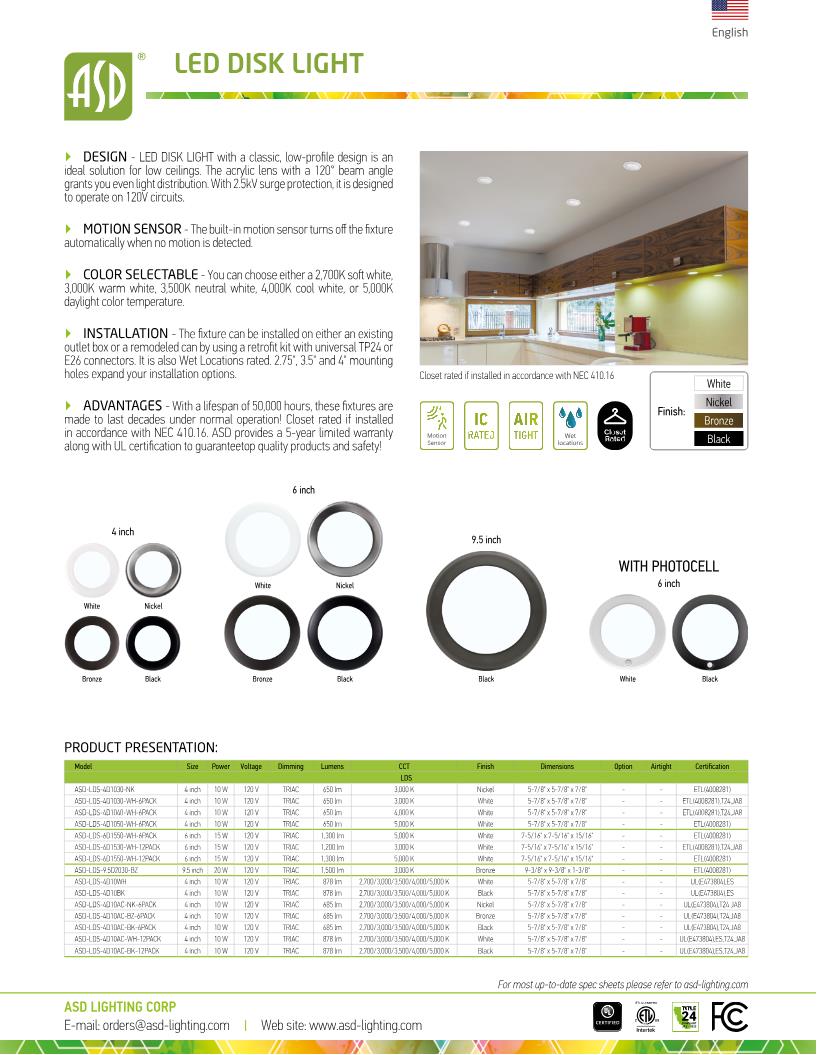

LDS D
DESIGN. LED DISK LIGHT with a classic, low-profile design is an ideal solution for low ceilings. The acrylic lens with a 120° beam angle grants you even light distribution. With 2.5kV surge protection, it is designed to operate on 120V circuits.
CRI90+ rating provides rich and natural colors and keeps your space looking and feeling vibrant. True bright colors also improve your mood and general health.
DIMMING. Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.
AVAILABLE FINISHES:
- Low-profile design is an ideal solution for low ceilings
- 2.75", 3.5" and 4" mounting holes for advanced installation options
- CRI90+ Rich and natural colors
- J-box or CAN mount installation
DOWNLOADS:
Finish
All
Nickel
White
Bronze
Matte Black
Matte White
Wattage
All
15
10
Voltage
All
120
ASD-LDS-6D15AC-NK-6PACK
- Finish
- Nickel
- Voltage
- 120
- Power
- 15
- Luminous Flux
- 1100 / 1207 / 1245 / 1218 / 1154
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 3500 / 4000 / 5000
ASD-LDS-6D1530-WH-12PACK
- Finish
- White
- Voltage
- 120
- Power
- 15
- Luminous Flux
- 1200
- Dimming
- Y
- Color Temperature
- 3000
ASD-LDS-6D1550-WH-12PACK
- Finish
- White
- Voltage
- 120
- Power
- 15
- Luminous Flux
- 1300
- Dimming
- Y
- Color Temperature
- 5000
ASD-LDS-4D10AC-BZ-6PACK
- Finish
- Bronze
- Voltage
- 120
- Power
- 10
- Luminous Flux
- 650 / 674 / 685 / 660 / 656
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 3500 / 4000 / 5000
ASD-LDS-4D10AC-NK-6PACK
- Finish
- Nickel
- Voltage
- 120
- Power
- 10
- Luminous Flux
- 650 / 674 / 685 / 660 / 656
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 3500 / 4000 / 5000
ASD-LDS-4D1040-WH-6PACK
- Finish
- White
- Voltage
- 120
- Power
- 10
- Luminous Flux
- 650
- Dimming
- Y
- Color Temperature
- 4000
ASD-LDS-6D15MB
- Finish
- Matte Black
- Voltage
- 120
- Power
- 15
- Luminous Flux
- 1090 / 1233 / 1293 / 1243 / 1134
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 3500 / 4000 / 5000
ASD-LDS-6D15MW
- Finish
- Matte White
- Voltage
- 120
- Power
- 15
- Luminous Flux
- 1090 / 1233 / 1293 / 1243 / 1134
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 3500 / 4000 / 5000
ASD-LDS-6D15AC-NK-6PACK
- UPC 81005073837
- Certification UL / ES
- Finish Nickel
- Material Iron, PC
- Voltage 120
- Power 15
- Luminous Flux 1100 / 1207 / 1245 / 1218 / 1154
- Dimming Y
- Color Temperature 2700/3000/3500/4000/5000
- Location Wet
- IP IP43
- Warranty 5
- Dimensions DxH 7 5/16 x 7 5/16 x 15/16
Downloads
ASD-LDS-6D1530-WH-12PACK
- UPC 81005073782
- Certification ETL
- Finish White
- Material Iron, Acrylic
- Voltage 120
- Power 15
- Luminous Flux 1200
- Dimming Y
- Color Temperature 3000
- Location Wet
- IP IP43
- Warranty 5
- Dimensions DxH 7 5/16 x 7 5/16 x 15/16
Downloads
ASD-LDS-6D1550-WH-12PACK
- UPC 81012811151
- Certification ETL
- Finish White
- Material Iron, Acrylic
- Voltage 120
- Power 15
- Luminous Flux 1300
- Dimming Y
- Color Temperature 5000
- Location Wet
- IP IP43
- Warranty 5
- Dimensions DxH 7 5/16 x 7 5/16 x 15/16
Downloads
ASD-LDS-4D10AC-BZ-6PACK
- UPC 81920102327
- Certification UL
- Finish Bronze
- Material Iron, PC
- Voltage 120
- Power 10
- Luminous Flux 650 / 674 / 685 / 660 / 656
- Dimming Y
- Color Temperature 2700/3000/3500/4000/5000
- Location Wet
- IP IP43
- Warranty 5
- Dimensions DxH 5 7/8 x 5 7/8 x 7/8
Downloads
ASD-LDS-4D10AC-NK-6PACK
- UPC 81005073856
- Certification UL
- Finish Nickel
- Material Iron, PC
- Voltage 120
- Power 10
- Luminous Flux 650 / 674 / 685 / 660 / 656
- Dimming Y
- Color Temperature 2700/3000/3500/4000/5000
- Location Wet
- IP IP43
- Warranty 5
- Dimensions DxH 5 7/8 x 5 7/8 x 7/8
Downloads
ASD-LDS-4D1040-WH-6PACK
- UPC 81005073852
- Certification ETL
- Finish White
- Material Iron, Acrylic
- Voltage 120
- Power 10
- Luminous Flux 650
- Dimming Y
- Color Temperature 4000
- Location Wet
- IP IP43
- Warranty 5
- Dimensions DxH 5 7/8 x 5 7/8 x 7/8
Downloads
ASD-LDS-6D15MB
- UPC 81012811524
- Certification ETL
- Finish Matte Black
- Material Metal, Plastic
- Voltage 120
- Power 15
- Luminous Flux 1090 / 1233 / 1293 / 1243 / 1134
- Dimming Y
- Color Temperature 2700/3000/3500/4000/5000
- Location Wet
- Warranty 5
- Dimensions DxH 7 5/16 x 7 5/16 x 15/16
Downloads
ASD-LDS-6D15MW
- UPC 81012811523
- Certification ETL
- Finish Matte White
- Material Metal, Plastic
- Voltage 120
- Power 15
- Luminous Flux 1090 / 1233 / 1293 / 1243 / 1134
- Dimming Y
- Color Temperature 2700/3000/3500/4000/5000
- Location Wet
- Warranty 5
- Dimensions DxH 7 5/16 x 7 5/16 x 15/16
Downloads
