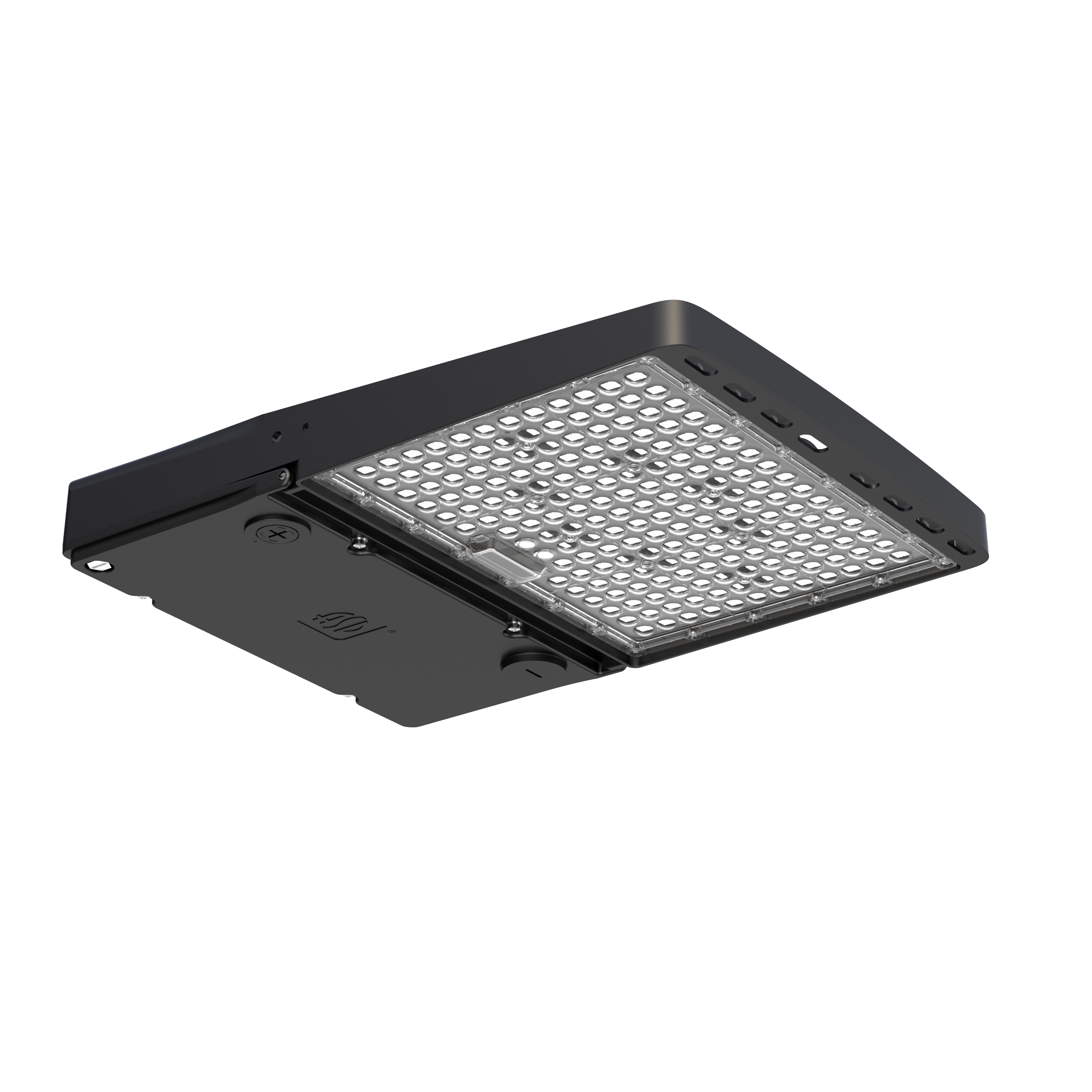

LED Area Lights with Q-base Series LSB5B-PRO

DESIGN. LED AREA LIGHT WITH Q-BASE AND PHOTOCELL is extremely efficient with up to 170lm/W output. With 10kV surge protection, it is designed to operate on120-277V or 200-480V circuits with a 0-10V dimmable driver. The built-in motion sensor base allows you to install the microwave or PIR motion sensor. Integrated photocell switches the fixture on at night time. It can be easily deactivated with simple on/off switch.

COLOR AND POWER SELECTABLE. You can choose either a 3,000K warm white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch.

3G. Vibration rated, withstands conditions with repeated vibration, making it conform to standards for roadway.

INSTALLATION.This fixture is Wet Locations rated and can be pole, post, or wall mounted using the slip fitter bracket, arm bracket, floodlight bracket, or full trunnion bracket. It comes with a 4 ft cord. Perfect commercial or industrial solution for roadway lighting, highway lighting, sport lighting, parks, parking lots, backyards, and many other applications.

ADVANTAGES: With calculated lifespan up to 167,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

LED Area Lights with Q-base and Photocell

Model
PowerlmCCTCRI
IPOperating t°DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)
ASD-LSB5B-PRO-240WH120-277V150/200/240W26,349/33,863/39,4703,000/4,000/5,000>70158°x100° (Type III-M)16 9/1612 3/162 1/2IP65-40 +122F°/-40 +50C°YesPremium810128118378

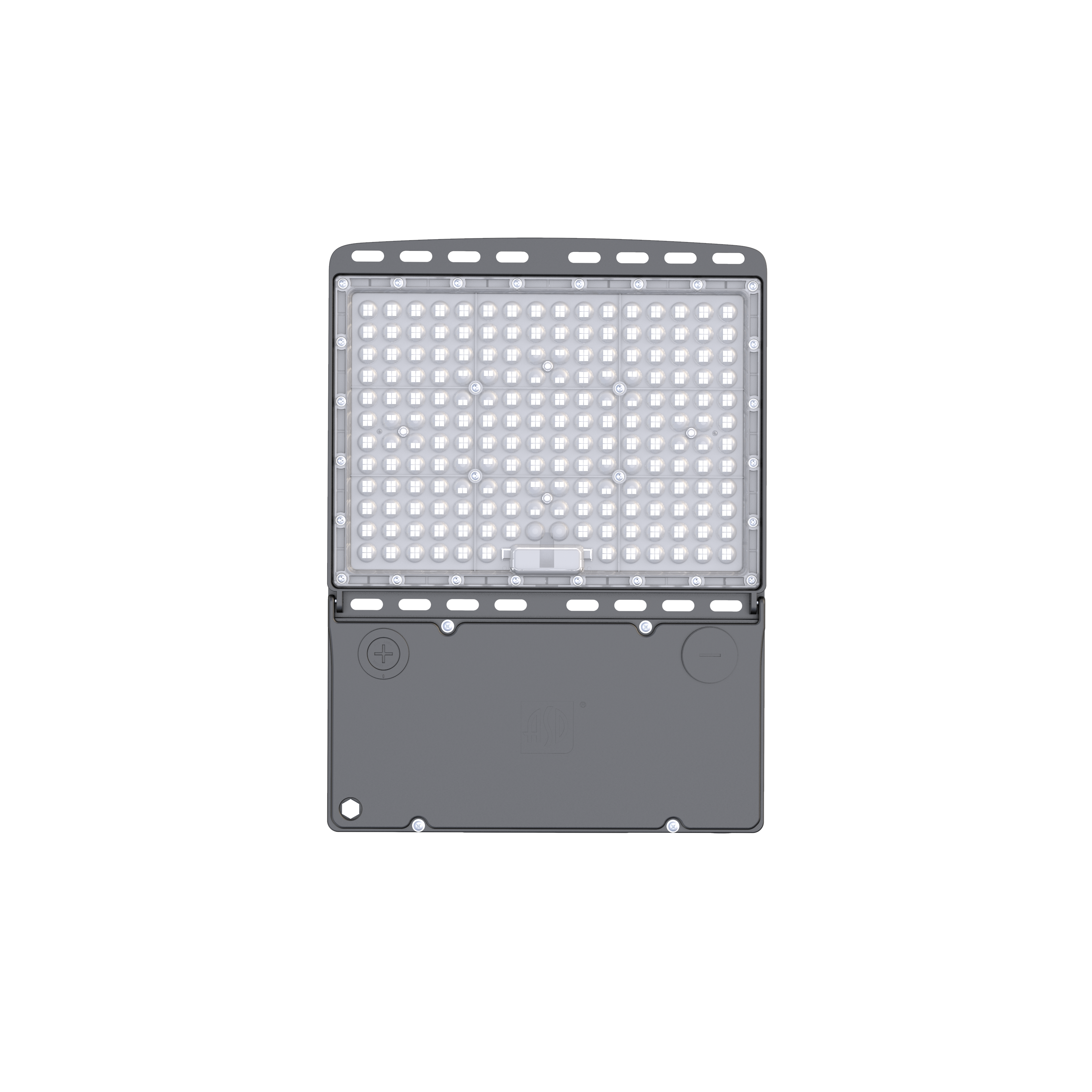

ASD-LSB5B-PRO-240BK120-277V150/200/240W26,349/33,863/39,4703,000/4,000/5,000>70158°x100° (Type III-M)16 9/1612 3/162 1/2IP65-40 +122F°/-40 +50C°YesPremium810128118361
ASD-LSB5B-PRO-150SL120-277V100/120/150W17,622/20,596/24,9143,000/4,000/5,000>70158°x100° (Type III-M)12 5/1611 5/162 7/16IP65-40 +122F°/-40 +50C°YesPremium810128118354
ASD-LSB5B-PRO-500BR120-277V300/400/500W57,693/69,516/83,9583,000/4,000/5,000>70158°x100° (Type III-M)29 7/1612 3/162 3/4IP65-40 +122F°/-40 +50C°YesPremium810128116886
ASD-LSB5B-PRO-300BR120-277V200/240/300W36,993/42,728/51,5043,000/4,000/5,000>70158°x100° (Type III-M)16 9/1612 3/162 1/2IP65-40 +122F°/-40 +50C°YesPremium810128116077
ASD-LSB5B-PRO-240BR120-277V150/200/240W26,349/33,863/39,4703,000/4,000/5,000>70158°x100° (Type III-M)16 9/1612 3/162 1/2IP65-40 +122F°/-40 +50C°YesPremium810128116060
ASD-LSB5B-PRO-150BR120-277V100/120/150W17,622/20,596/24,9143,000/4,000/5,000>70158°x100° (Type III-M)12 5/1611 5/162 7/16IP65-40 +122F°/-40 +50C°YesPremium810128116046
ASD-LSB5B-PRO-200BR120-277V100/150/200W18,280/25,791/33,4003,000/4,000/5,000>70158°x100° (Type III-M)12 5/1611 5/162 7/16IP65-40 +122F°/-40 +50C°YesPremium810128116053

LED Area Lights with Q-base and Photocell High Voltage

Model
PowerlmCCTCRI
IPOperating t°DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)

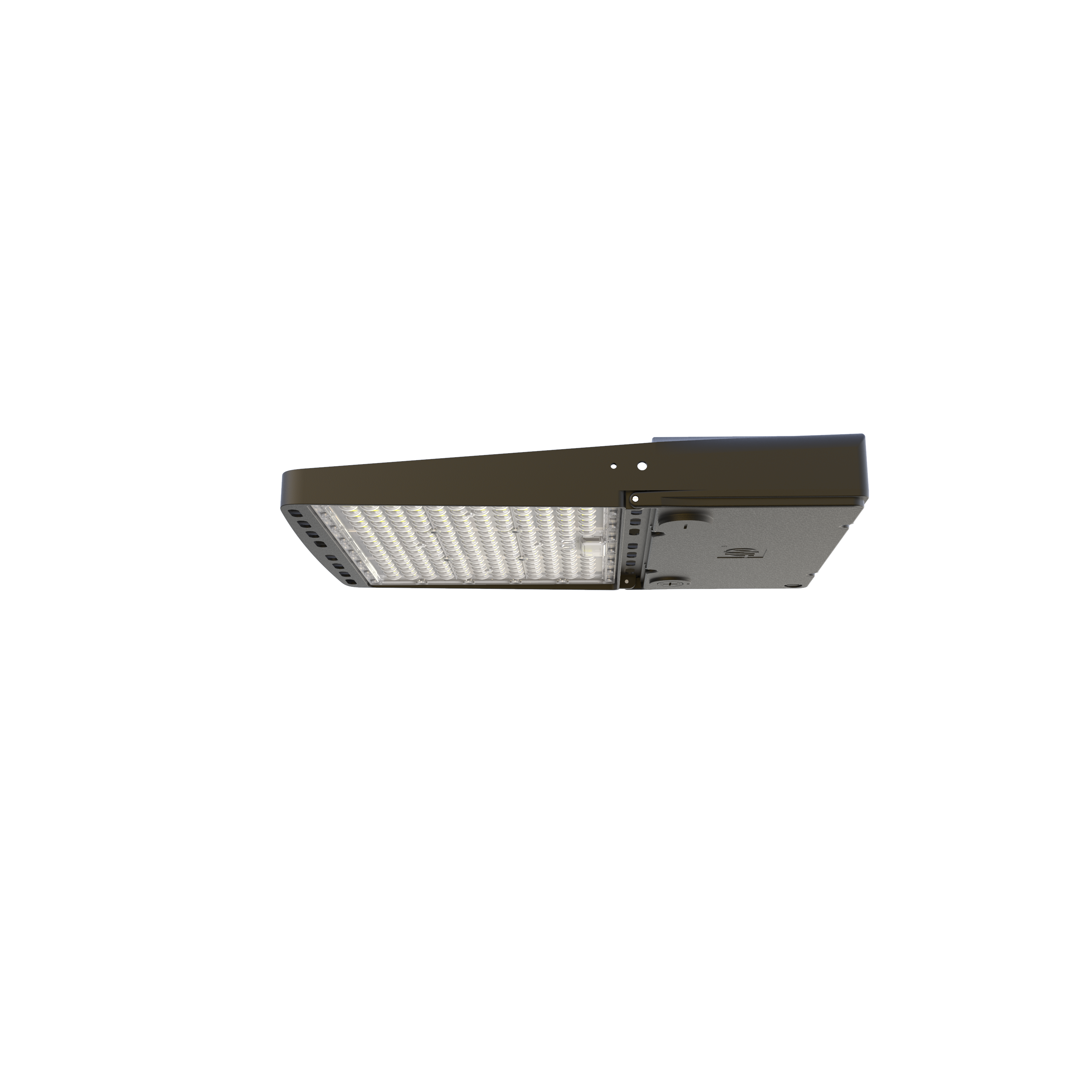

ASD-LSB5BHV-PRO-300BR200-480V200/240/300W35,162/41,252/51,3463,000/4,000/5,000>70158°x100° (Type III-M)16 9/1612 3/162 1/2IP65-40 +122F°/-40 +50C°YesPremium810128116107

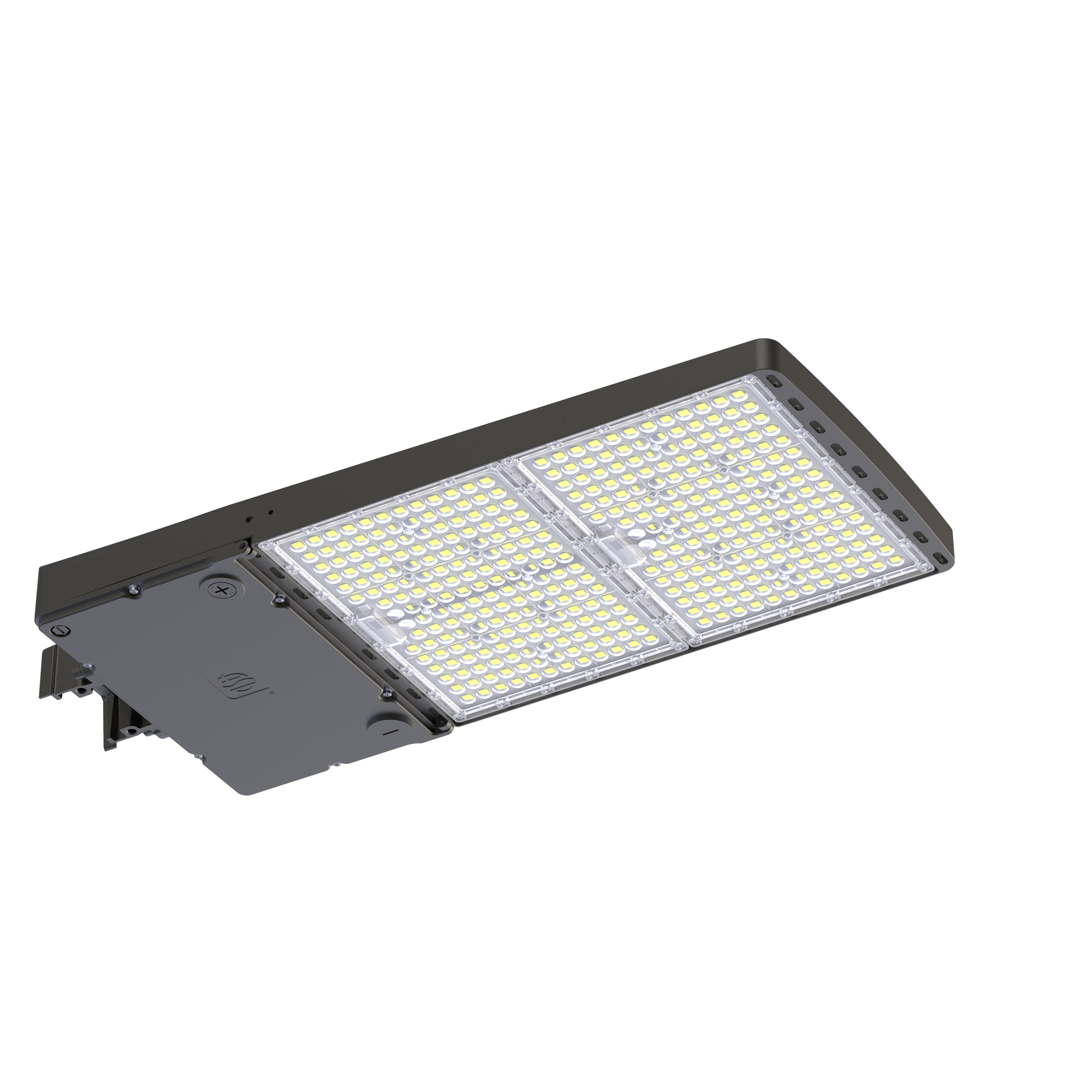

ASD-LSB5BHV-PRO-500BR200-480V300/400/500W56,350/70,658/84,2263,000/4,000/5,000>70158°x100° (Type III-M)29 7/1612 3/162 3/4IP65-40 +122F°/-40 +50C°YesPremium810128116909
ASD-LSB5BHV-PRO-200BR200-480V100/150/200W18,140/25,911/34,2273,000/4,000/5,000>70158°x100° (Type III-M)12 5/1611 5/162 7/16IP65-40 +122F°/-40 +50C°YesPremium810128116893

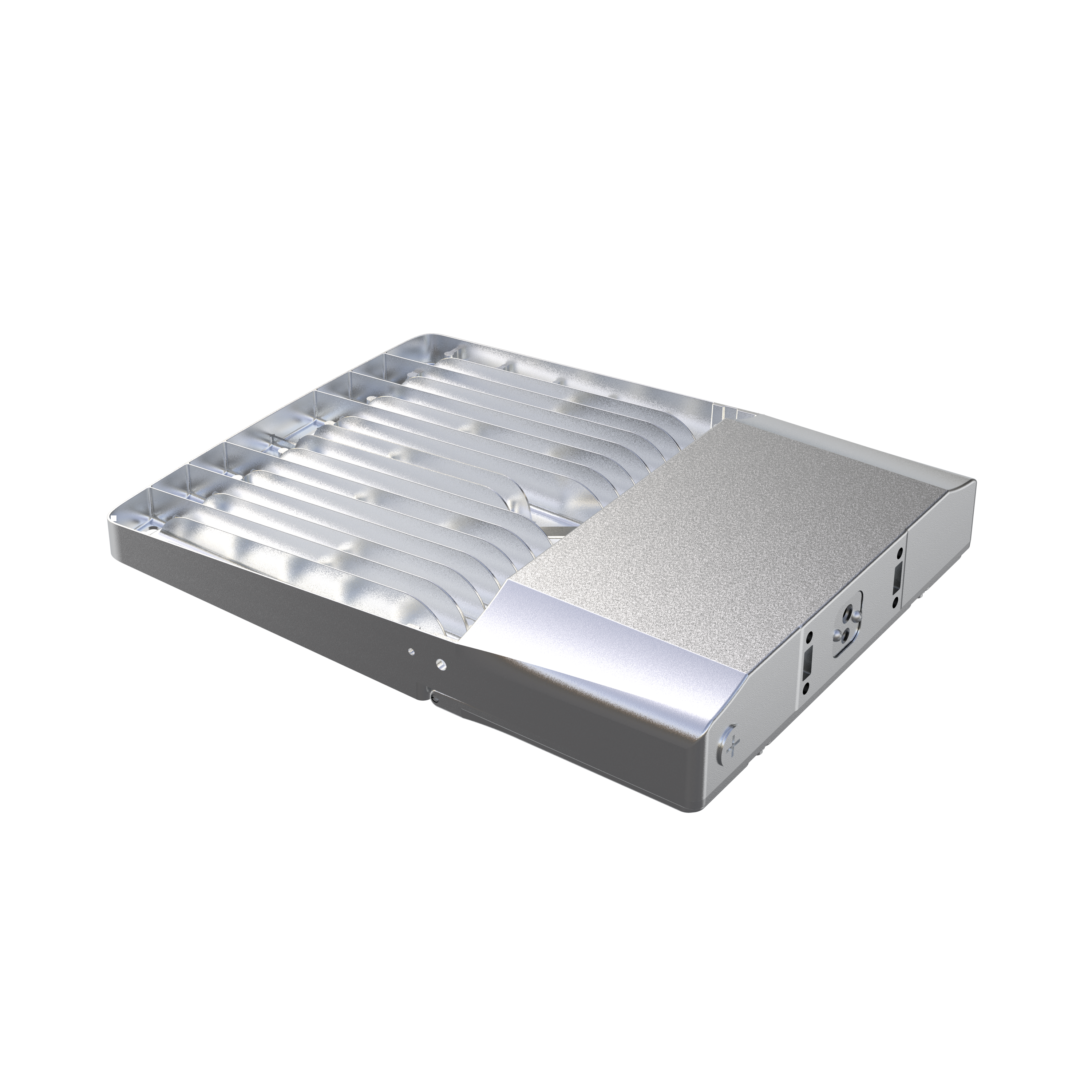

ASD-LSB5BHV-PRO-300SL200-480V200/240/300W35,162/41,252/51,3463,000/4,000/5,000>70158°x100° (Type III-M)16 9/1612 3/162 1/2IP65-40 +122F°/-40 +50C°YesPremium810128116121
ASD-LSB5BHV-PRO-300WH200-480V200/240/300W35,162/41,252/51,3463,000/4,000/5,000>70158°x100° (Type III-M)16 9/1612 3/162 1/2IP65-40 +122F°/-40 +50C°YesPremium810128116114
ASD-LSB5BHV-PRO-240BR200-480V150/200/240W26,222/33,791/40,3113,000/4,000/5,000>70158°x100° (Type III-M)16 9/1612 3/162 1/2IP65-40 +122F°/-40 +50C°YesPremium810128116091
ASD-LSB5BHV-PRO-150BR200-480V100/120/150W18,896/20,206/24,4333,000/4,000/5,000>70158°x100° (Type III-M)12 5/1611 5/162 7/16IP65-40 +122F°/-40 +50C°YesPremium810128116084
