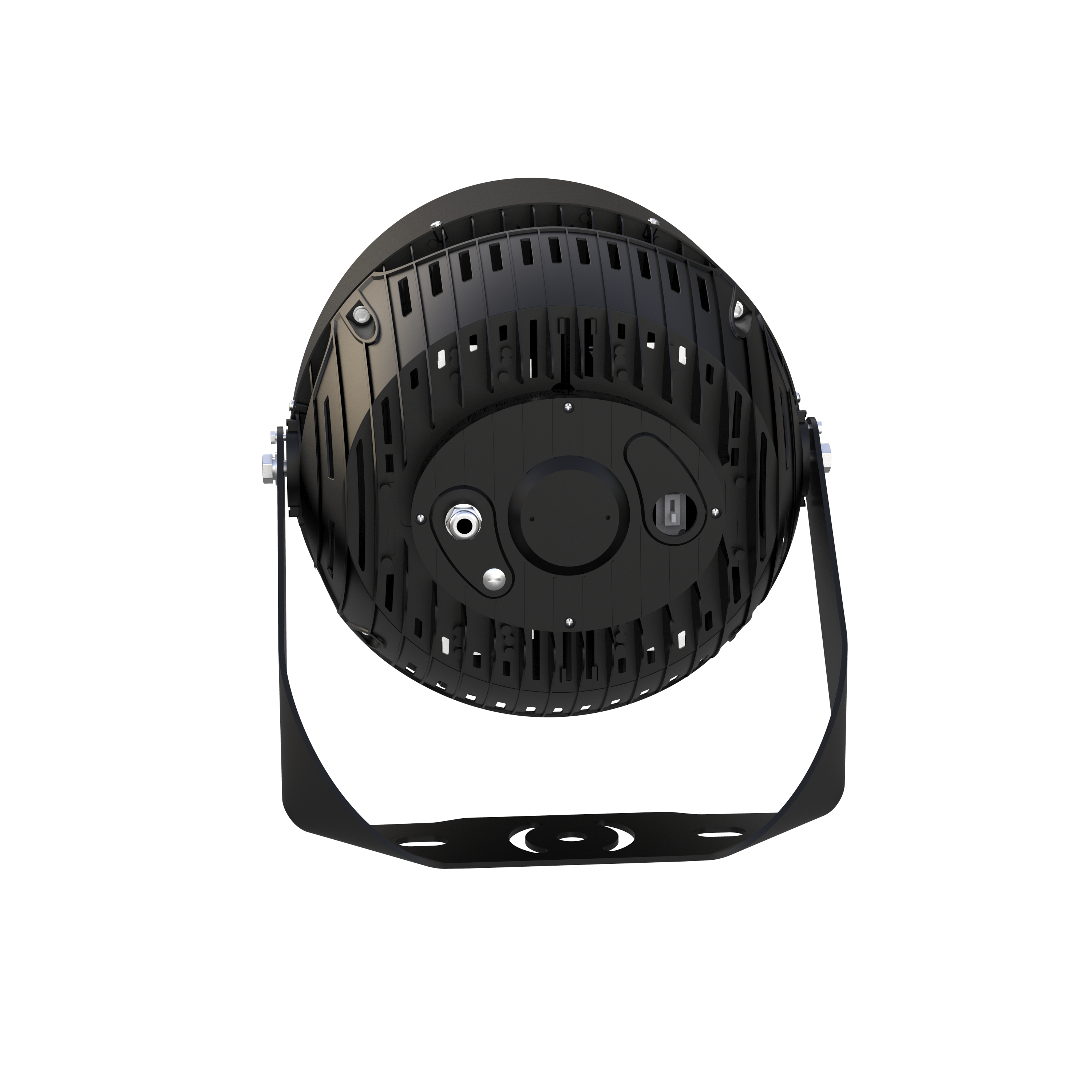

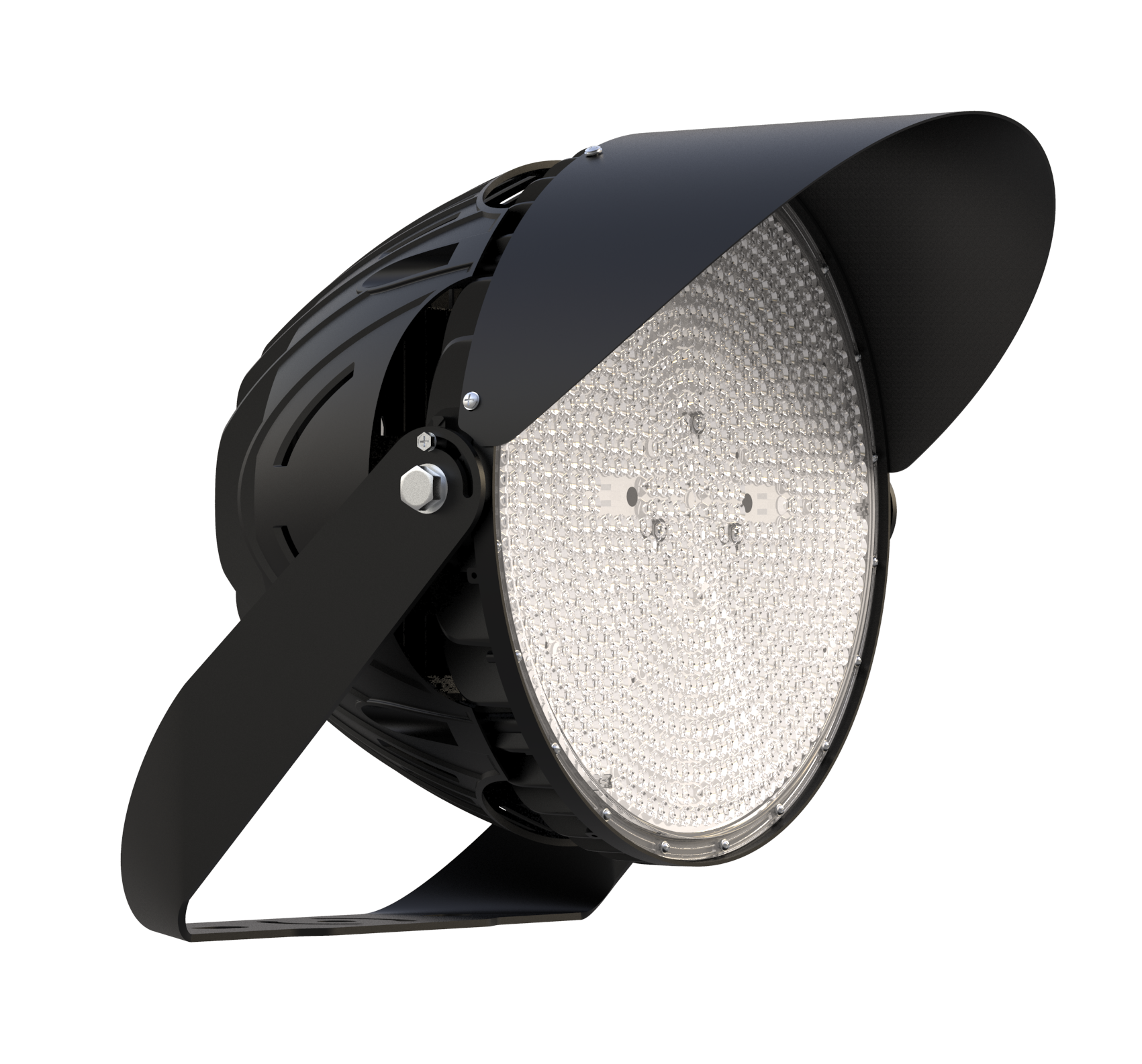

LED Sport Lights Series SPFL7

DESIGN. LED SPORT LIGHT has a die-cast aluminum housing with numerous vents on the heat sink for excellent heat dissipation. Advanced optics designed with unique multi-scale lenses provides uniform light distribution, glare-reduction maximizes the light output. CRI80+ rating provides rich and natural colors. It is designed to operate on 120-277V or 277-480 circuits with a 0-10V dimmable driver.

SURGE PROTECTION 10kV protects the fixture from voltage spikes and current surges.
3G vibration rated, withstands conditions with repeated vibration, making it conform to standards for roadway.

INSTALLATION. This fixture is Wet locations rated and has two mounting options with a standard floodlight bracket or a slip fitter. It comes with 3.3 ft cord. Perfect commercial or industrial solution for any outdoor sports lighting, parking lot lighting, dock lighting, high mast flood lighting, stadium lighting, and many other applications.

ADVANTAGES: With calculated lifespan up to 153,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 7-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!
Model
PowerlmCCTCRI
IPOperating t°
DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)
ASD-SPFL7-A500D50120-277V300/400/500W48,507/63,902/75,0575,000>8045°17 5/816 1/816 1/16IP66-40 +122F°/-40 +50C°R>102,000 C>167,000YesPremium810128114851
ASD-SPFL7-300D50120-277V300W44,9145,000>8045°17 5/816 1/816 1/16IP66-40 +122F°/-40 +50C°R>102,000 C>167,000YesPremium810128114844

LED Sport Lights Series SPFL7 High Voltage

Model
PowerlmCCTCRI
IPOperating t°
DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)
ASD-SPFL7-HV-A1300D50200-480V1,000/1,200/1,300W161,118/186,953/197,8275,000>8040°37 1/422 5/821 1/4IP66-40 +122F°/-40 +50C°R>54,000 C>129,000YesPremium810128117869
ASD-SPFL7-HV-A750D50200-480V600/680/750W95,564/105,120/113,6655,000>8040°3117 7/817 3/4IP66-40 +122F°/-40 +50C°R>54,000 C>140,000YesPremium810128114875
ASD-SPFL7-HV-A500D50200-480V300/400/500W48,507/63,902/75,0575,000>8045°17 5/816 1/816 1/16IP66-40 +122F°/-40 +50C°R>102,000 C>167,000YesPremium810128114868
ASD-SPFL7-HV-A1000D50200-480V600/750/1,000W95,564/119,348/149,8775,000>8040°37 1/422 5/821 1/4IP66-40 +122F°/-40 +50C°R>54,000 C>140,000YesPremium810128114882
