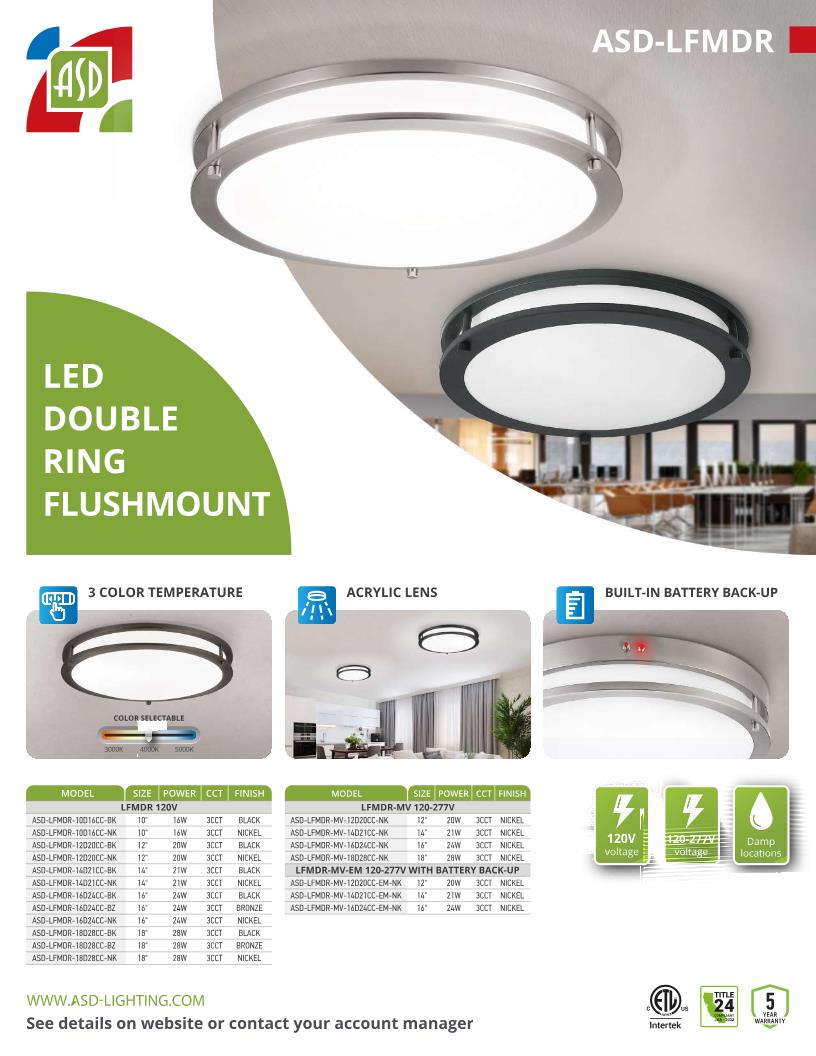

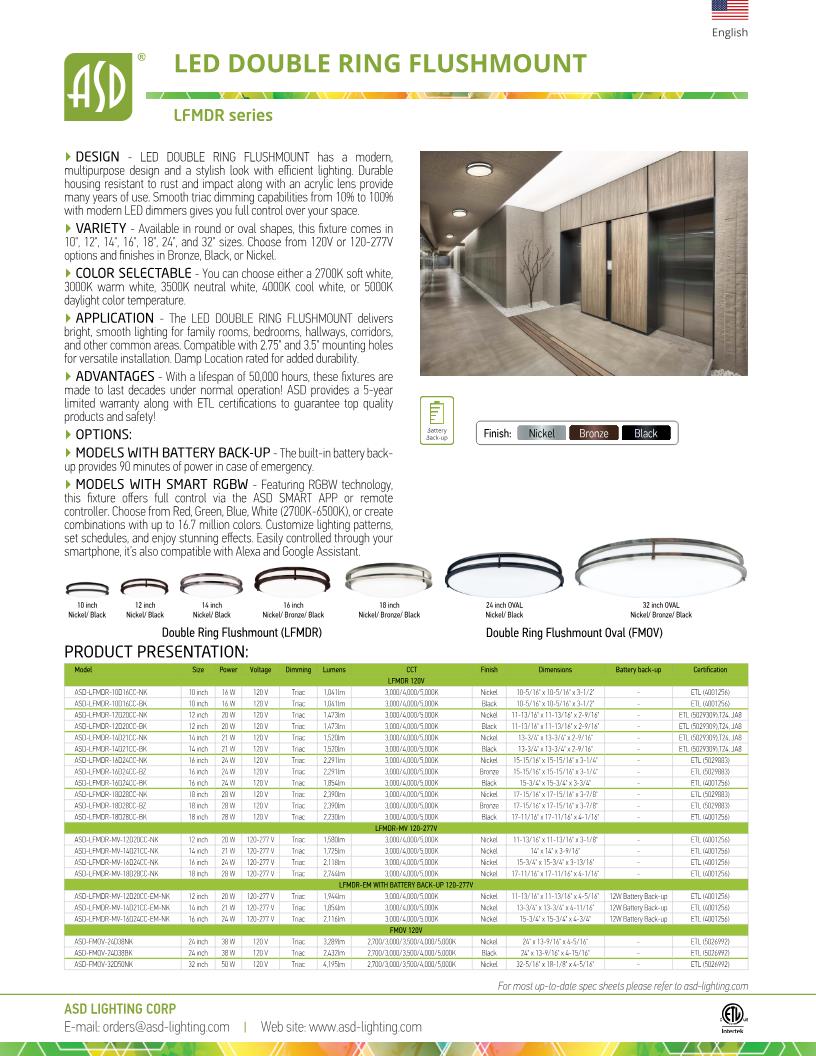

LFMDR

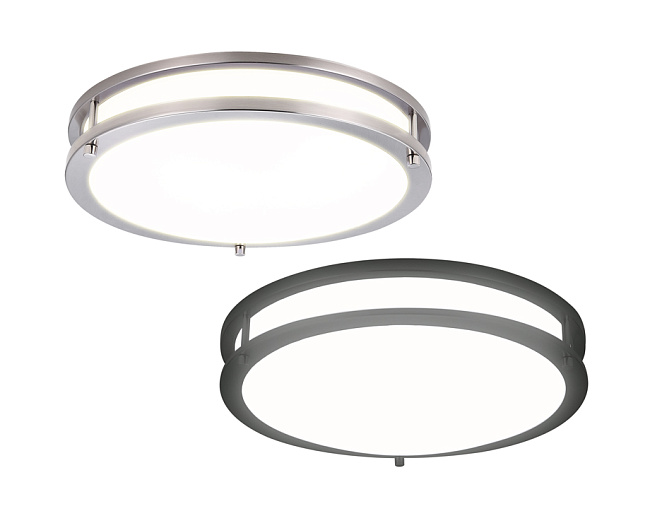

DESIGN. LED DOUBLE RING FLUSHMOUNT has a modern, multipurpose design and a stylish look with efficient lighting. Durable housing resistant to rust and impact along with an acrylic lens provide many years of use. Smooth triac dimming capabilities from 10% to 100% with modern LED dimmers gives you full control over your space.

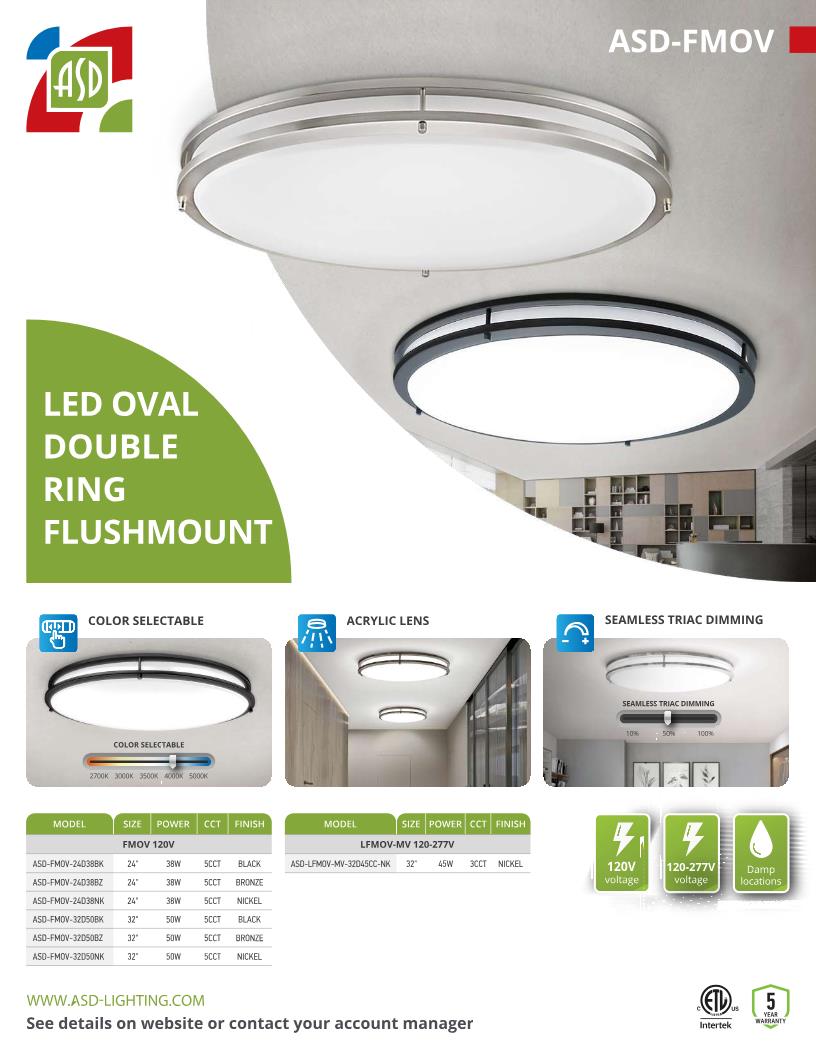

VARIETY. Available in round or oval shapes, this fixture comes in 10", 12", 14", 16", 18", 24", and 32" sizes. Choose from 120V or 120-277V options and finishes in Bronze, Black, or Nickel.

COLOR SELECTABLE. You can choose either a 2700K soft white, 3000K warm white, 3500K neutral white, 4000K cool white, or 5000K daylight color temperature.

APPLICATION. The LED DOUBLE RING FLUSHMOUNT delivers bright, smooth lighting for family rooms, bedrooms, hallways, corridors, and other common areas. Compatible with 2.75" and 3.5" mounting holes for versatile installation. Damp Location rated for added durability.

ADVANTAGES: With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL certifications to guarantee top quality products and safety!

AVAILABLE FINISHES:

Durable housing resistant to rust and impact
Acrylic lens with even light distribution
5 color temperature options
2.75" and 3.5" mounting holes for advanced installation options

Product
Sizes

10-32"

Available
Power

16-50W

Color
temperature

3CCT, 5CCT

DOWNLOADS:

ETL

T24

5 year warranty

Finish

All

Nickel

Bronze

Black

Wattage

All

16

20

28

21

24

Voltage

All

120

120-277

ASD LED Double Ring Flushmount 10inch 16W 120V Triac 3000/4000/5000K Nickel ETL T24 JA8

ASD-LFMDR-10D16CC-NK

UPC 81005073170
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120
Power 16
Luminous Flux 965 / 1041 / 1016

Dimming Y
Color Temperature 3000/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 10 5/16 x 10 5/16 x 3 1/2

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 12inch 20W 120V Triac 3000/4000/5000K Nickel ETL T24 JA8

ASD-LFMDR-12D20CC-NK

UPC 81005073573
Certification ETL
Finish Nickel
Material Iron, PC
Voltage 120
Power 20

Luminous Flux 1473
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 11 13/16 x 11 13/16 x 2 9/16

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 18inch 28W 120V Triac 2700/3000/3500/4000/5000K Bronze ETL T24 JA8

ASD-LFMDR-18D28CC-BZ

Certification ETL
Finish Bronze
Material Metal, Plastic
Voltage 120
Power 28
Luminous Flux 2190 / 2352 / 2390 / 2390 / 2258

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 17 15/16 x 17 15/16 x 3 7/8

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 18inch 28W 120V Triac 2700/3000/3500/4000/5000K Nickel ETL T24 JA8

ASD-LFMDR-18D28CC-NK

Certification ETL
Finish Nickel
Material Metal, Plastic
Voltage 120
Power 28
Luminous Flux 2190 / 2352 / 2390 / 2390 / 2258

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 17 15/16 x 17 15/16 x 3 7/8

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 12inch 20W 120-277V Triac 3000/4000/5000K Nickel ETL

ASD-LFMDR-MV-12D20CC-NK

UPC 81005073282
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 20
Luminous Flux 1400 / 1580 / 1450

Dimming Y
Color Temperature 3000/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 11 13/16 x 11 13/16 x 3 1/8

Downloads

IES (PDF)

IES

ASD LED Double Ring Flushmount 14inch 21W 120-277V Triac 3000/4000/5000K with Battery Back-up 12W Nickel ETL

ASD-LFMDR-MV-14D21CC-EM-NK

UPC 81920102799
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 21
Luminous Flux 1656 / 1854 / 1789

Dimming Y
Color Temperature 3000/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 13 3/4 x 13 3/4 x 4 11/16

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 14inch 21W 120-277V Triac 3000/4000/5000K Nickel ETL

ASD-LFMDR-MV-14D21CC-NK

UPC 81920102792
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 21
Luminous Flux 1500 / 1725 / 1621

Dimming Y
Color Temperature 3000/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 14 x 14 x 3 9/16

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 16inch 24W 120-277V Triac 3000/4000/5000K with Battery Back-up 12W Nickel ETL

ASD-LFMDR-MV-16D24CC-EM-NK

UPC 81920102800
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 24
Luminous Flux 1889 / 2116 / 1954

Dimming Y
Color Temperature 3000/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 15 3/4 x 15 3/4 x 4 3/4

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 16inch 24W 120-277V Triac 2700/3000/3500/4000/5000K Nickel ETL

ASD-LFMDR-MV-16D24CC-NK

Certification ETL
Finish Nickel
Material Iron, PMMA
Voltage 120-277
Power 24
Luminous Flux 1723 / 1827 / 1889 / 1865 / 1720

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
IP 20
Warranty 5
Dimensions DxH 15 15/16 x 15 15/16 x 3 1/4

Downloads

IES (PDF)

IES

ASD LED Double Ring Flushmount 18inch 28W 120-277V Triac 2700/3000/3500/4000/5000K Nickel ETL

ASD-LFMDR-MV-18D28CC-NK

Certification ETL
Finish Nickel
Material Metal, Plastic
Voltage 120-277
Power 28
Luminous Flux 2197 / 2355 / 2389 / 2381 / 2236

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 17 15/16 x 17 15/16 x 3 7/8

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 14inch 21W 120V Triac 3000/4000/5000K Nickel ETL T24 JA8

ASD-LFMDR-14D21CC-NK

UPC 81005073608
Certification ETL
Finish Nickel
Material Iron, PC
Voltage 120
Power 21

Luminous Flux 1470 / 1675 / 1654
Dimming Y
Color Temperature 3000/4000/5000
Location Damp
Warranty 5
Dimensions DxH 13 3/4 x 13 3/4 x 2 9/16

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 16inch 24W 120V Triac 2700/3000/3500/4000/5000K Bronze ETL T24 JA8

ASD-LFMDR-16D24CC-BZ

UPC 81005073611
Certification ETL
Finish Bronze
Material Metal, Plastic
Voltage 120
Power 24
Luminous Flux 2063 / 2180 / 2246 / 2291 / 2120

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 15 15/16 x 15 15/16 x 3 1/4

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 16inch 24W 120V Triac 2700/3000/3500/4000/5000K Nickel ETL T24 JA8

ASD-LFMDR-16D24CC-NK

UPC 81005073610
Certification ETL
Finish Nickel
Material Metal, Plastic
Voltage 120
Power 24
Luminous Flux 2063 / 2180 / 2246 / 2291 / 2120

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 15 15/16 x 15 15/16 x 3 1/4

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 12inch 20W 120V Triac 3000/4000/5000K Black ETL T24 JA8

ASD-LFMDR-12D20CC-BK

UPC 81012811166
Certification ETL
Finish Black
Material Iron, PC
Voltage 120
Power 20

Luminous Flux 1473
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 11 13/16 x 11 13/16 x 2 9/16

Downloads

IES

IES (PDF)

ASD LED Double Ring Flushmount 14inch 21W 120V Triac 3000/4000/5000K Black ETL T24 JA8

ASD-LFMDR-14D21CC-BK

UPC 81012811167
Certification ETL
Finish Black
Material Iron, PC
Voltage 120
Power 21

Luminous Flux 1520
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 13 3/4 x 13 3/4 x 2 9/16

Downloads

IES (PDF)

IES

ASD LED Double Ring Flushmount 16inch 24W 120V Triac 2700/3000/3500/4000/5000K Black ETL T24 JA8

ASD-LFMDR-16D24CC-BK

UPC 81012811168
Certification ETL
Finish Black
Material Metal, Plastic
Voltage 120
Power 24
Luminous Flux 2063 / 2180 / 2246 / 2291 / 2120

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
IP IP20
Warranty 5
Dimensions DxH 15 15/16 x 15 15/16 x 3 1/4

Downloads

IES (PDF)

IES

ASD LED Double Ring Flushmount 18inch 28W 120V Triac 2700/3000/3500/4000/5000K Black ETL T24 JA8

ASD-LFMDR-18D28CC-BK

Certification ETL
Finish Black
Material Iron, PC
Voltage 120
Power 28
Luminous Flux 2304

Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 17 11/16 x 17 11/16 x 3 1/8

Downloads

IES (PDF)

IES

ASD LED Double Ring Flushmount 12inch 20W 120-277V Triac 3000/4000/5000K with Battery Back-up 12W Nickel ETL

ASD-LFMDR-MV-12D20CC-EM-NK

UPC 81012811253
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 20
Luminous Flux 1658 / 1944 / 1816

Dimming Y
Color Temperature 3000/4000/5000
Location Damp
IP IP22
Warranty 5
Dimensions DxH 11 13/16 x 11 13/16 x 4 5/16

Downloads

IES (PDF)

IES

ASD LED Double Ring Flushmount 10inch 16W 120V Triac 3000/4000/5000K Black ETL T24 JA8

ASD-LFMDR-10D16CC-BK

UPC 81012811770
Certification ETL
Finish Black
Material Steel, Acrylic
Voltage 120
Power 16

Luminous Flux 965 / 1041 / 1016
Dimming Y
Color Temperature 3000/4000/5000
Location Damp
Warranty 5
Dimensions DxH 10 5/16 x 10 5/16 x 3 1/2

Downloads

IES

IES (PDF)
