HomeProductsRESIDENTIALSURFACE MOUNT LED PANELSLPR

LPR

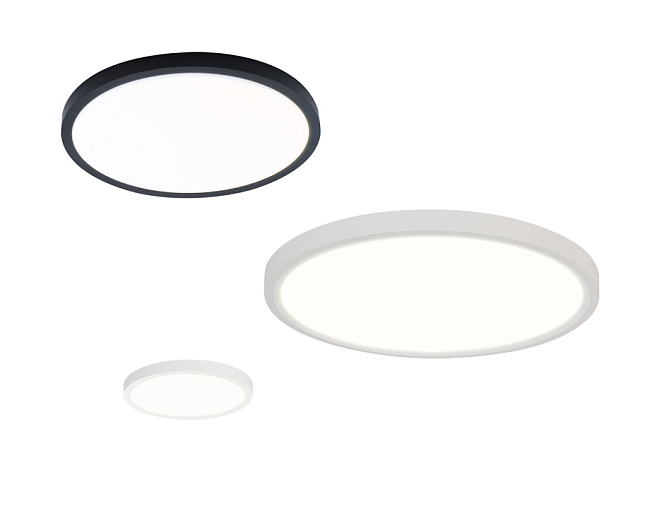

DESIGN. LED PANEL ROUND offers a sleek, low-profile design, ideal for spaces with low ceilings.It's acrylic lens with a 120° beam angle ensures you even light distribution.

COLOR SELECTABLE. You can choose either a 2700K soft white, 3000K warm white, 4000K cool white, 5000K daylight or 6500K ?ool daylight temperature.

DIMMING. Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.

INSTALLATION - The fixture can be installed on either an existing outlet box. It is ideal for family rooms, bedrooms, and other common living areas.

ADVANTAGES: ASD provides a 3-year limited warranty along with ETL certifications to guarantee top quality products and safety!

AVAILABLE FINISHES:
  • Low-profile design is an ideal solution for low ceilings
  • CRI90+ Rich and natural colors
  • 5 color temperature options
  • Smooth triac dimming
Product
Sizes
5" - 24"
Available
Power
12W - 50W
Color
temperature
5CCT
DOWNLOADS:

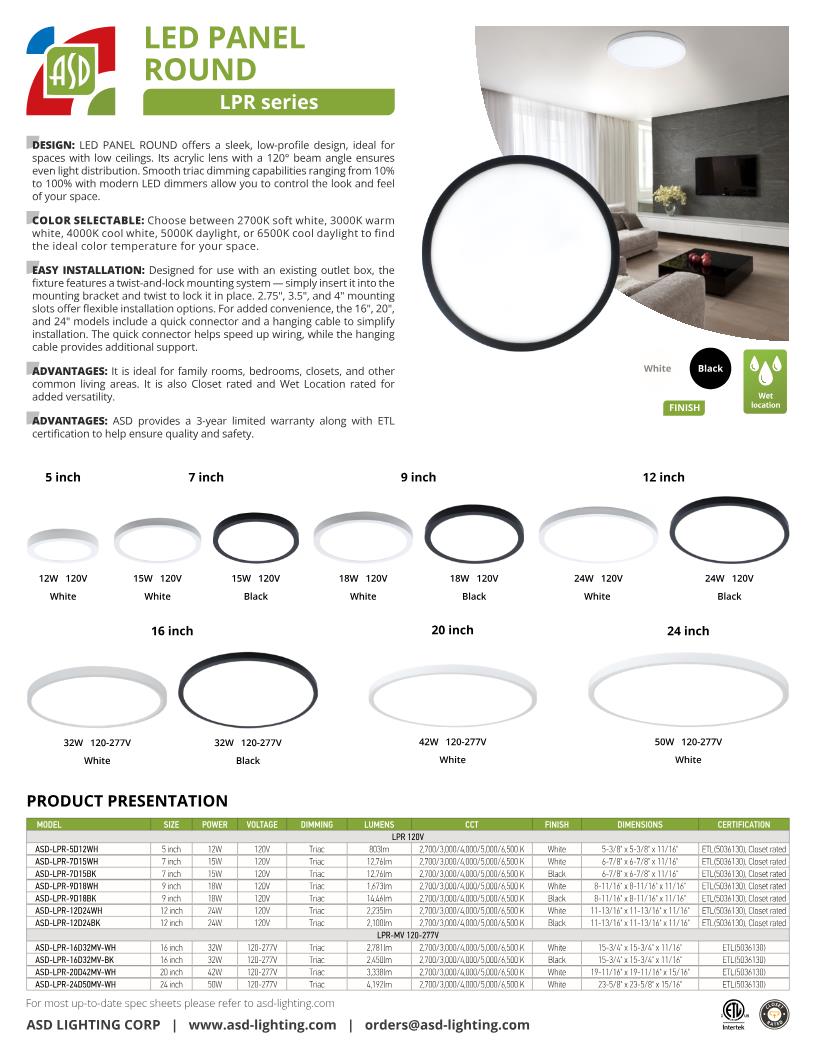

Cut Sheet

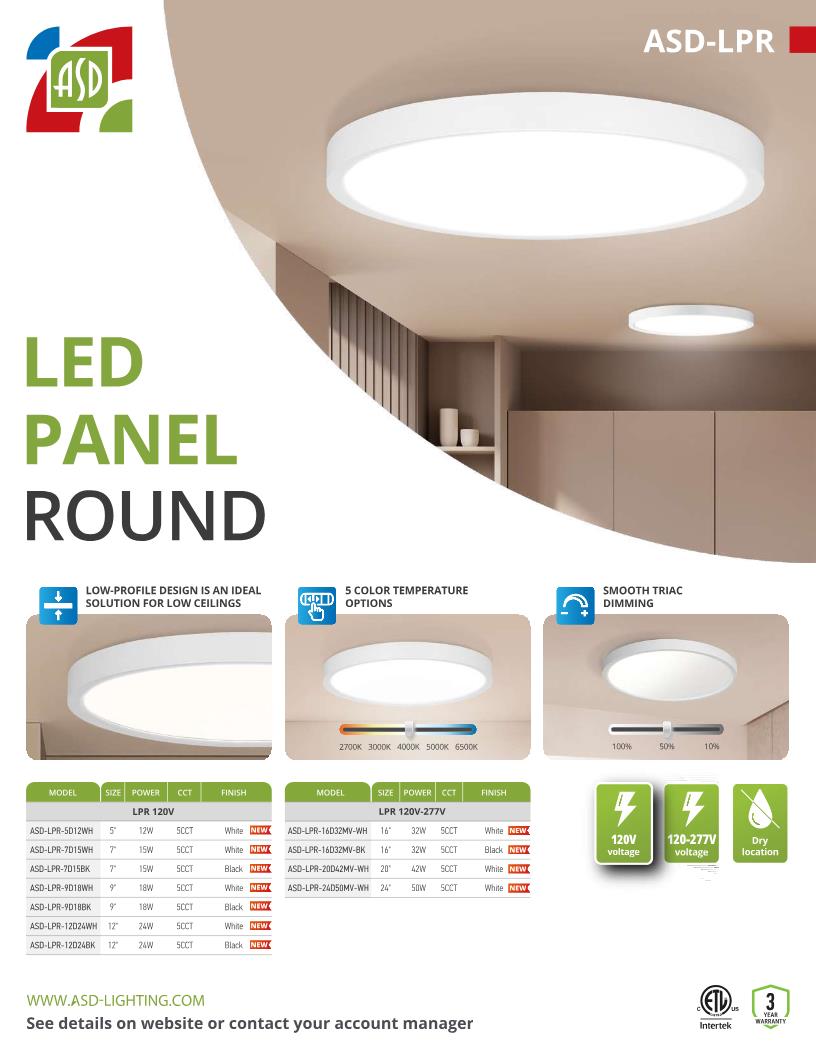

Product Flyer
ETL 3 year warranty
Finish
All
White
Black
Wattage
All
18
24
32
42
50
12
15
Voltage
All
120
120-277
ASD LED Round Panel 9inch 18W 120V Triac 2700/3000/4000/5000/6500K White ETL
ASD-LPR-9D18WH
Finish
White
Voltage
120
Power
18
Luminous Flux
1447 / 1505 / 1673 / 1644 / 1520
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
ASD LED Round Panel 12inch 24W 120V Triac 2700/3000/4000/5000/6500K White ETL
ASD-LPR-12D24WH
Finish
White
Voltage
120
Power
24
Luminous Flux
1964 / 2026 / 2235 / 2187 / 2044
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
ASD LED Round Panel 16inch 32W 120-277V Triac 2700/3000/4000/5000/6500K White ETL
ASD-LPR-16D32MV-WH
Finish
White
Voltage
120-277
Power
32
Luminous Flux
2444 / 2500 / 2781 / 2700 / 2555
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
ASD LED Round Panel 20inch 42W 120-277V Triac 2700/3000/4000/5000/6500K White ETL
ASD-LPR-20D42MV-WH
Finish
White
Voltage
120-277
Power
42
Luminous Flux
2968 / 3094 / 3338 / 3316 / 3064
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
ASD LED Round Panel 24inch 50W 120-277V Triac 2700/3000/4000/5000/6500K White ETL
ASD-LPR-24D50MV-WH
Finish
White
Voltage
120-277
Power
50
Luminous Flux
3627 / 3819 / 4192 / 4186 / 3817
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
ASD LED Round Panel 5inch 12W 120V Triac 2700/3000/4000/5000/6500K White ETL
ASD-LPR-5D12WH
Finish
White
Voltage
120
Power
12
Luminous Flux
803
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
ASD LED Round Panel 7inch 15W 120V Triac 2700/3000/4000/5000/6500K Black ETL
ASD-LPR-7D15BK
Finish
Black
Voltage
120
Power
15
Luminous Flux
1276
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
ASD LED Round Panel 7inch 15W 120V Triac 2700/3000/4000/5000/6500K White ETL
ASD-LPR-7D15WH
Finish
White
Voltage
120
Power
15
Luminous Flux
1276
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
ASD LED Round Panel 9inch 18W 120V Triac 2700/3000/4000/5000/6500K Black ETL
ASD-LPR-9D18BK
Finish
Black
Voltage
120
Power
18
Luminous Flux
1446
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
ASD LED Round Panel 12inch 24W 120V Triac 2700/3000/4000/5000/6500K Black ETL
ASD-LPR-12D24BK
Finish
White
Voltage
120
Power
24
Luminous Flux
2100
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
ASD LED Round Panel 16inch 32W 120-277V Triac 2700/3000/4000/5000/6500K Black ETL
ASD-LPR-16D32MV-BK
Finish
White
Voltage
120-277
Power
32
Luminous Flux
2450
Dimming
Y
Color Temperature
2700 / 3000 / 4000 / 5000 / 6500
Quick view
