OCLR

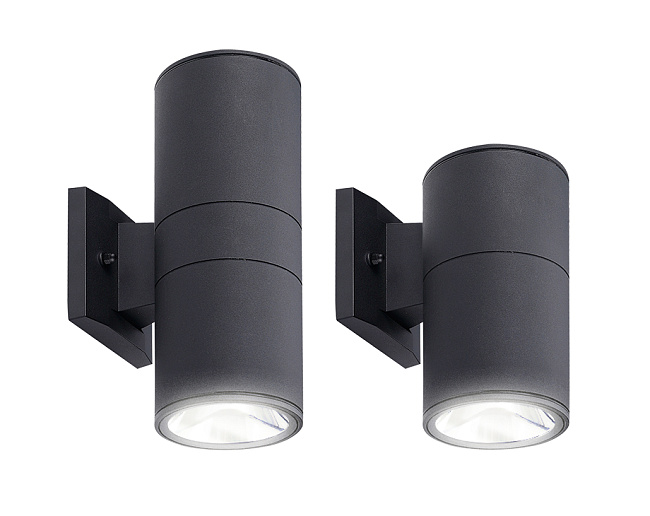

DESIGN. BULB ROUND OUTDOOR WALL CYLINDERS has a modern design with effective up or down illumination. This E26 base fixture is made from die-cast aluminum and a tempered glass cover.

VARIETY. The fixture comes in round and square shapes in 8-inch and 12-inch with up or down installation option and available in White, Black and Stainless Steel finishes. Some models are also have an additional decorative ring for elegance and beauty of the glow. The high quality reflector creates a 50° beam angle.

BULBS. The fixture includes a standard E26 medium base. We recommend to use LED A19 bulb.

APPLICATION. The fixture is rated for Wet Locations, making it perfect for indoor and outdoor projects such as decks, front doors, porches, patios, corridors, walkways, or any other common areas.

ADVANTAGES: ASD provides a 5-year limited warranty along with ETL certification to guarantee top quality products and safety!

AVAILABLE FINISHES:

High quality reflector with 50° beam angle
Simple and quick bulb replacement
Rust and impact aluminum housing for all weather conditions
Waterproof for all weather conditions

DOWNLOADS:

ETL

5 year warranty

Finish

All

Black

White

Stainless Steel

Voltage

All

120

ASD Bulb Round 1-side Outdoor Wall Cylinder with 1 Ring 1xE26 60W 120V Black ETL

ASD-OCLR-1B-BK

UPC 81012811514
Certification ETL
Finish Black
Material Aluminium, Clear Glass, Transparent insert
Voltage 120

Location Wet
IP IP44
Warranty 5
Dimensions DxH 6 9/16 x 4 3/8 x 7 15/16

ASD Bulb Round 2-sides Outdoor Wall Cylinder with 2 Rings 2xE26 60W 120V Black ETL

ASD-OCLR-2B-BK

UPC 81012811515
Certification ETL
Finish Black
Material Aluminium, Clear Glass, Transparent Insert
Voltage 120

Location Wet
IP IP44
Warranty 5
Dimensions DxH 6 9/16 x 4 3/8 x 11 13/16

ASD Bulb Round 1-side Outdoor Wall Cylinder with Photocell 1xE26 60W 120V Black ETL

ASD-OCLR-1A-PC-BK

UPC 81012811634
Certification ETL
Finish Black
Material Aluminum, Glass

Voltage 120
Location Wet
Warranty 5
Dimensions DxH 6 7/16 x 4 3/8 x 7 7/8

ASD Bulb Round 1-side Outdoor Wall Cylinder 1xE26 60W 120V Black ETL

ASD-OCLR-1A-BK

UPC 81012811720
Certification ETL
Finish Black
Material Aluminum, Glass

Voltage 120
Location Wet
Warranty 5
Dimensions DxH 6 7/16 x 4 3/8 x 7 7/8

ASD BULB Round Outdoor Wall Cylinder 1xE26 60W 120V White ETL

ASD-OCLR-1A-WH

UPC 81012811721
Certification ETL
Finish White
Material Aluminum, Glass

Voltage 120
Location Wet
Warranty 5
Dimensions DxH 6 7/16 x 4 3/8 x 7 7/8

ASD Bulb Round 2-sides Outdoor Wall Cylinder 2xE26 60W 120V Black ETL

ASD-OCLR-2A-BK

UPC 81012811722
Certification ETL
Finish Black
Material Aluminum, Glass

Voltage 120
Location Wet
Warranty 5
Dimensions DxH 6 7/16 x 4 3/8 x 11 13/16

ASD BULB Round Outdoor Wall Cylinder Up and Down 2xE26 60W 120V White ETL

ASD-OCLR-2A-WH

UPC 81012811723
Certification ETL
Finish White
Material Aluminum, Glass

Voltage 120
Location Wet
Warranty 5
Dimensions DxH 6 7/16 x 4 3/8 x 11 13/16

ASD BULB Round Outdoor Wall Cylinder Up and Down 2xE26 40W 120V with Photocell Black ETL

ASD-OCLR-2A-PC-BK

UPC 81012811724
Certification ETL
Finish Black
Material Aluminum, Glass

Voltage 120
Location Wet
Warranty 5
Dimensions DxH 6 7/16 x 4 3/8 x 11 13/16

ASD Bulb Round 1-side Outdoor Wall Cylinder 1xE26 60W 120V Stainless Steel ETL

ASD-OCLR-1A-SS

UPC 81019020036
Certification ETL
Finish Stainless Steel
Material Aluminum, Glass
Voltage 120

Location Wet
IP 44
Warranty 5
Dimensions DxH 6 9/16 x 4 3/8 x 7 7/8

ASD BULB Round Outdoor Wall Cylinder Up and Down 2xE26 60W 120V Stainless Steel ETL

ASD-OCLR-2A-SS

UPC 81019020037
Certification ETL
Finish Stainless Steel
Material Aluminum, Glass
Voltage 120

Location Wet
IP 44
Warranty 5
Dimensions DxH 6 9/16 x 4 3/8 x 11 13/16
