OLWS-21

DESIGN. LED OUTDOOR WALL SCONCES has a modern, multipurpose design and a stylish look with efficient lighting. Durable housing resistant to rust and impact provides many years of service. The UV resistant PMMA lens with a 120° beam angle grants you even light distribution. It is designed to operate on 120-277V circuits.

VARIETY. The fixture comes in 10-inch, 18-inch, 24-inch and 36-inch and available in Black, Bronze, Nickel finishes. Fixtures with grid are availible.

COLOR SELECTABLE. You can choose either a 3000K warm white, 4000K cool white or 5000K daylight color temperature.

APPLICATION. The fixture is rated for Wet Locations, making it perfect for indoor and outdoor projects such as decks, front doors, porches, patios, corridors, walkways, or any other common areas.

ADVANTAGES: With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL certification to guarantee top quality products and safety!

MODELS WITH MOTION SENSOR. The built-in infrared motion sensor will turn off the fixture automatically when no motion is detected.

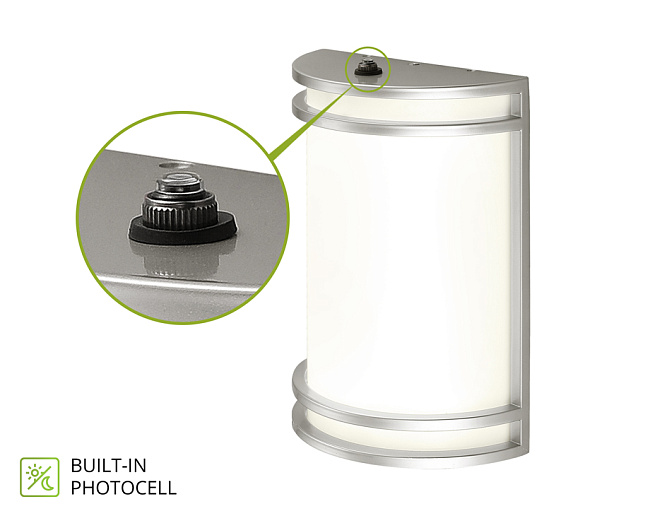

MODELS WITH PHOTOCELL. The built-in Dusk to Dawn Photocell will automatically turn the fixture on/off depending on the time of day.

AVAILABLE FINISHES:

Durable housing resistant to rust and impact
UV resistant PMMA lens with even light distribution
3 color temperature options
Waterproof for all weather conditions

Available
Power

15-30W

Color
temperature

3CCT

DOWNLOADS:

ETL

5 year warranty

Finish

All

Bronze

Nickel

Black

Wattage

All

20

25

30

15

Voltage

All

120-277

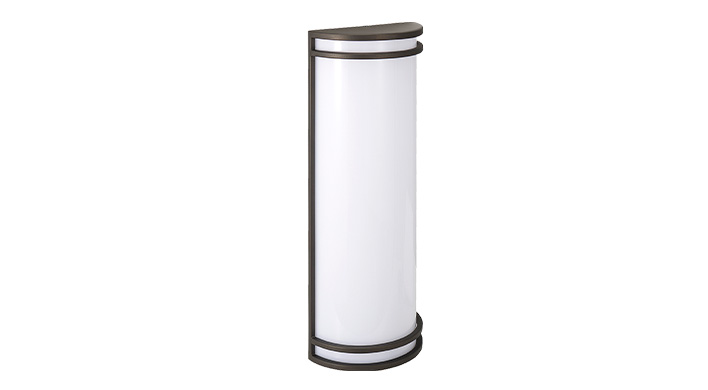

ASD LED Outdoor Wall Sconce 18inch 20W 120-277V Triac 3000/4000/5000K Bronze ETL

ASD-OLWS-21-MV-18D20CC-BZ

UPC 81012811277
Certification ETL
Finish Bronze
Material Factory ORB-106
Voltage 120-277
Power 20
Luminous Flux 2215 / 2457 / 2359

Dimming Y
Color Temperature 3000/4000/5000
Location Wet
IP IP44
Warranty 5
Dimensions DxH 3 1/4 x 7 x 17 15/16

Downloads

IES (PDF)

IES

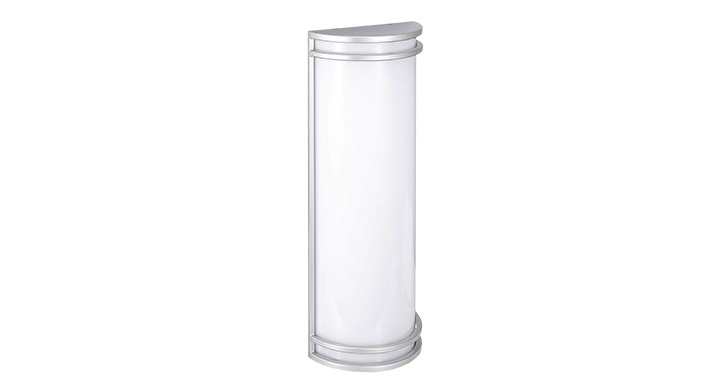

ASD LED Outdoor Wall Sconce 18inch 20W 120-277V Triac 3000/4000/5000K Nickel ETL

ASD-OLWS-21-MV-18D20CC-NK

UPC 81012811278
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 20
Luminous Flux 2215 / 2457 / 2359

Dimming Y
Color Temperature 3000/4000/5000
Location Wet
IP IP44
Warranty 5
Dimensions DxH 3 1/4 x 7 x 17 15/16

Downloads

IES (PDF)

IES

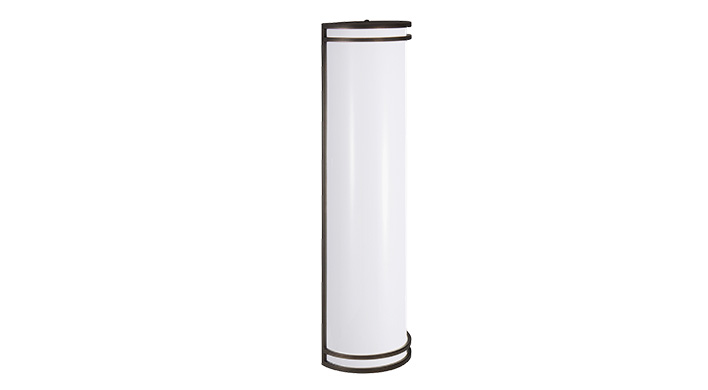

ASD LED Outdoor Wall Sconce 24inch 25W 120-277V Triac 3000/4000/5000K Bronze ETL

ASD-OLWS-21-MV-24D25CC-BZ

UPC 81012811279
Certification ETL
Finish Bronze
Material Steel, Acrylic
Voltage 120-277
Power 25
Luminous Flux 2692 / 3017 / 2905

Dimming Y
Color Temperature 3000/4000/5000
Location Wet
IP IP44
Warranty 5
Dimensions DxH 3 1/4 x 7 x 23 13/16

Downloads

IES (PDF)

IES

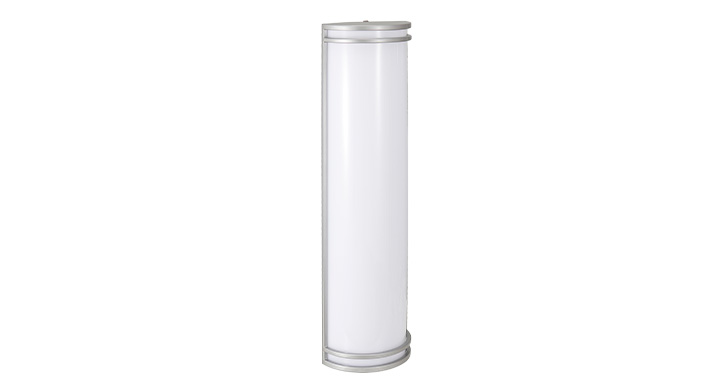

ASD LED Outdoor Wall Sconce 24inch 25W 120-277V Triac 3000/4000/5000K Nickel ETL

ASD-OLWS-21-MV-24D25CC-NK

UPC 81012811280
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 25
Luminous Flux 2692 / 3017 / 2905

Dimming Y
Color Temperature 3000/4000/5000
Location Wet
IP IP44
Warranty 5
Dimensions DxH 3 1/4 x 7 x 23 13/16

Downloads

IES (PDF)

IES

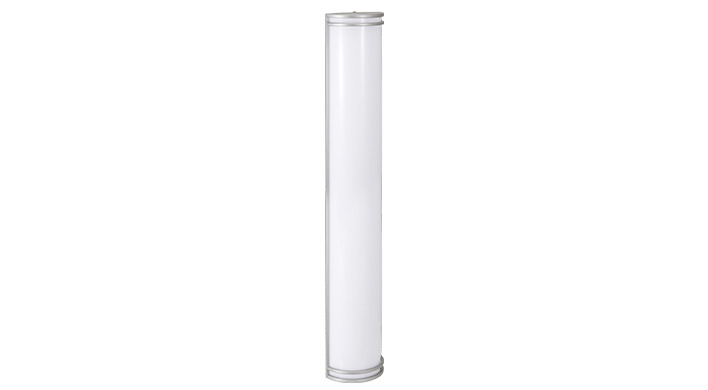

ASD LED Outdoor Wall Sconce 36inch 30W 120-277V Triac 3000/4000/5000K Nickel ETL

ASD-OLWS-21-MV-36D30CC-NK

UPC 81012811571
Certification ETL
Finish Nickel
Material Steel, acrylic
Voltage 120-277
Power 30
Luminous Flux 2972 / 3268 / 3159

Dimming Y
Color Temperature 3000/4000/5000
Location Wet
IP IP44
Warranty 5
Dimensions DxH 3 1/4 x 7 x 36

Downloads

IES (PDF)

IES

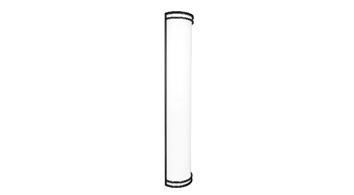

ASD LED Outdoor Wall Sconce 36inch 30W 120-277V Triac 3000/4000/5000K Black ETL

ASD-OLWS-21-MV-36D30CC-BK

UPC 81012811572
Certification ETL
Finish Black
Material Steel, acrylic
Voltage 120-277
Power 30
Luminous Flux 2972 / 3268 / 3159

Dimming Y
Color Temperature 3000/4000/5000
Location Wet
IP IP44
Warranty 5
Dimensions DxH 3 1/4 x 7 x 36

Downloads

IES (PDF)

IES

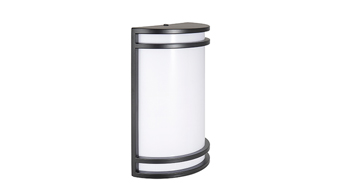

ASD LED Outdoor Wall Sconce 10inch 15W 120-277V Triac 3000/4000/5000K Black ETL

ASD-OLWS-21-MV-10D15CC-BK

UPC 81012811699
Certification ETL
Finish Black
Material Steel, Acrylic
Voltage 120-277
Power 15

Luminous Flux 1230 / 1361 / 1289
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 1/4 x 7 x 10

Downloads

IES (PDF)

IES

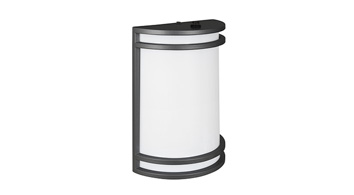

ASD LED Outdoor Wall Sconce 10inch 15W 120-277V Non-Dimmable 3000/4000/5000K with Photocell Black ETL

ASD-OLWS-21-MV-10N15BK-PC

UPC 81012811730
Certification ETL
Finish Black
Material Steel, Acrylic
Voltage 120-277
Power 15

Luminous Flux 1156 / 1281 / 1210
Dimming N
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 1/4 x 7 x 10 7/16

Downloads

IES (PDF)

IES

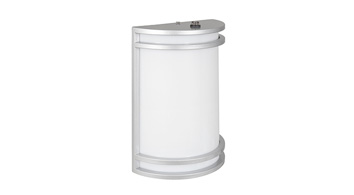

ASD LED Outdoor Wall Sconce 10inch 15W 120-277V Non-Dimmable 3000/4000/5000K with Photocell Nickel ETL

ASD-OLWS-21-MV-10N15NK-PC

UPC 81012811731
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 15

Luminous Flux 1156 / 1281 / 1210
Dimming N
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 1/4 x 7 x 10 7/16

Downloads

IES (PDF)

IES

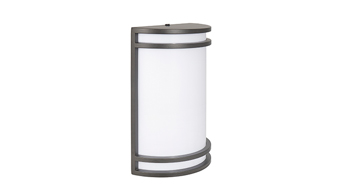

ASD LED Outdoor Wall Sconce 10inch 15W 120-277V Triac 3000/4000/5000K Bronze ETL

ASD-OLWS-21-MV-10D15CC-BZ

UPC 81012811732
Certification ETL
Finish Bronze
Material Steel, Acrylic
Voltage 120-277
Power 15

Luminous Flux 1230 / 1361 / 1289
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 1/4 x 7 x 10

Downloads

IES (PDF)

IES

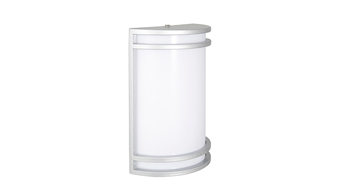

ASD LED Outdoor Wall Sconce 10inch 15W 120-277V Triac 3000/4000/5000K Nickel ETL

ASD-OLWS-21-MV-10D15CC-NK

UPC 81012811733
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 15

Luminous Flux 1230 / 1361 / 1289
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 1/4 x 7 x 10

Downloads

IES (PDF)

IES

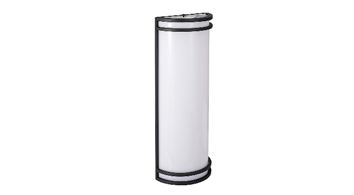

ASD LED Outdoor Wall Sconce 18inch 20W 120-277V Triac 3000/4000/5000K Black ETL

ASD-OLWS-21-MV-18D20CC-BK

UPC 81012811734
Certification ETL
Finish Black
Material Steel, Acrylic
Voltage 120-277
Power 20

Luminous Flux 2215 / 2457 / 2359
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 1/4 x 7 x 17 15/16

Downloads

IES (PDF)

IES

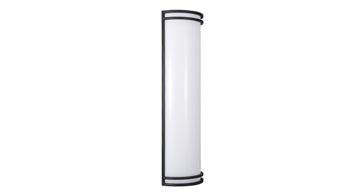

ASD LED Outdoor Wall Sconce 24inch 25W 120-277V Triac 3000/4000/5000K Black ETL

ASD-OLWS-21-MV-24D25CC-BK

UPC 81012811735
Certification ETL
Finish Black
Material Steel, Acrylic
Voltage 120-277
Power 25

Luminous Flux 2692 / 3017 / 2905
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 1/4 x 7 x 23 13/16

Downloads

IES (PDF)

IES

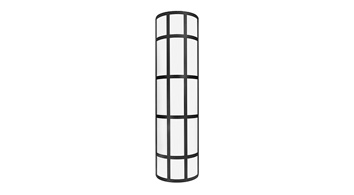

ASD LED Outdoor Wall Sconce with Grid 24inch 25W 120-277V 0-10V Dimmable 3000/4000/5000K Black ETL

ASD-OLWS-21GR-MV-24D25BK

UPC 81012811773
Certification ETL
Finish Black
Material Steel, Acrylic
Voltage 120-277
Power 25

Luminous Flux 2019 / 2183 / 2066
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 x 6 1/2 x 23 11/16

Downloads

IES (PDF)

IES

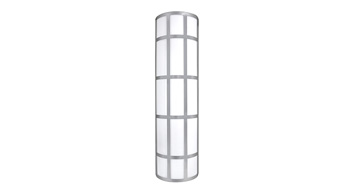

ASD LED Outdoor Wall Sconce with Grid 24inch 25W 120-277V 0-10V Dimmable 3000/4000/5000K Brushed Nickel ETL

ASD-OLWS-21GR-MV-24D25NK

UPC 81012811774
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 25

Luminous Flux 2019 / 2183 / 2066
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 x 6 1/2 x 23 11/16

Downloads

IES (PDF)

IES

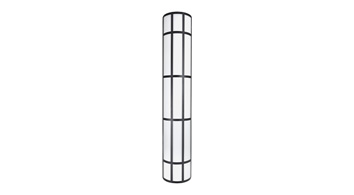

ASD LED Outdoor Wall Sconce with Grid 36inch 30W 120-277V 0-10V Dimmable 3000/4000/5000K Black ETL

ASD-OLWS-21GR-MV-36D30BK

UPC 81012811775
Certification ETL
Finish Black
Material Steel, Acrylic
Voltage 120-277
Power 30

Luminous Flux 2379 / 2465 / 2379
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 x 6 1/2 x 35 7/8

Downloads

IES

IES (PDF)

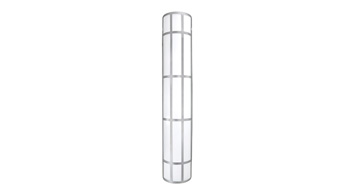

ASD LED Outdoor Wall Sconce with Grid 36inch 30W 120-277V 0-10V Dimmable 3000/4000/5000K Brushed Nickel ETL

ASD-OLWS-21GR-MV-36D30NK

UPC 81012811776
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 30

Luminous Flux 2379 / 2465 / 2379
Dimming Y
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 x 6 1/2 x 35 7/8

Downloads

IES

IES (PDF)

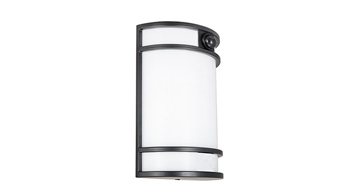

ASD LED Outdoor Wall Sconce 10inch 15W 120-277V Non-Dimmable 3000/4000/5000K with Infrared Motion Sensor Black ETL

ASD-OLWS-21-10N15BK-MS

UPC 81012811822
Certification ETL
Finish Black
Material Steel, Acrylic
Voltage 120-277
Power 15

Luminous Flux 1054 / 1172 / 1131
Dimming N
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 9/16 x 7 x 9 15/16

Downloads

IES (PDF)

IES

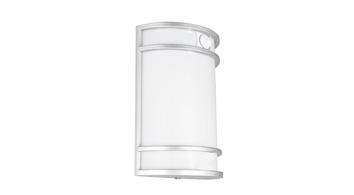

ASD LED Outdoor Wall Sconce 10inch 15W 120-277V Non-Dimmable 3000/4000/5000K with Infrared Motion Sensor Nickel ETL

ASD-OLWS-21-10N15NK-MS

UPC 81012811823
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 15

Luminous Flux 1054 / 1172 / 1131
Dimming N
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 9/16 x 7 x 9 15/16

Downloads

IES (PDF)

IES

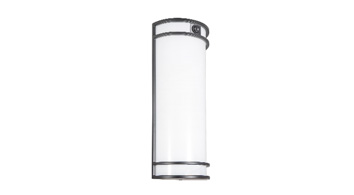

ASD LED Outdoor Wall Sconce 18inch 20W 120-277V Non-Dimmable 3000/4000/5000K with Infrared Motion Sensor Black ETL

ASD-OLWS-21-18N20BK-MS

UPC 81012811824
Certification ETL
Finish Black
Material Steel, Acrylic
Voltage 120-277
Power 20

Luminous Flux 1819 / 2002 / 1940
Dimming N
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 9/16 x 7 x 17 15/16

Downloads

IES (PDF)

IES

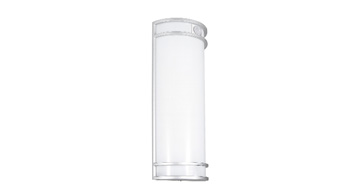

ASD LED Outdoor Wall Sconce 18inch 20W 120-277V Non-Dimmable 3000/4000/5000K with Infrared Motion Sensor Nickel ETL

ASD-OLWS-21-18N20NK-MS

UPC 81012811825
Certification ETL
Finish Nickel
Material Steel, Acrylic
Voltage 120-277
Power 20

Luminous Flux 1819 / 2002 / 1940
Dimming N
Color Temperature 3000/4000/5000
Location Wet
Warranty 5
Dimensions DxH 3 9/16 x 7 x 17 15/16

Downloads

IES (PDF)

IES
