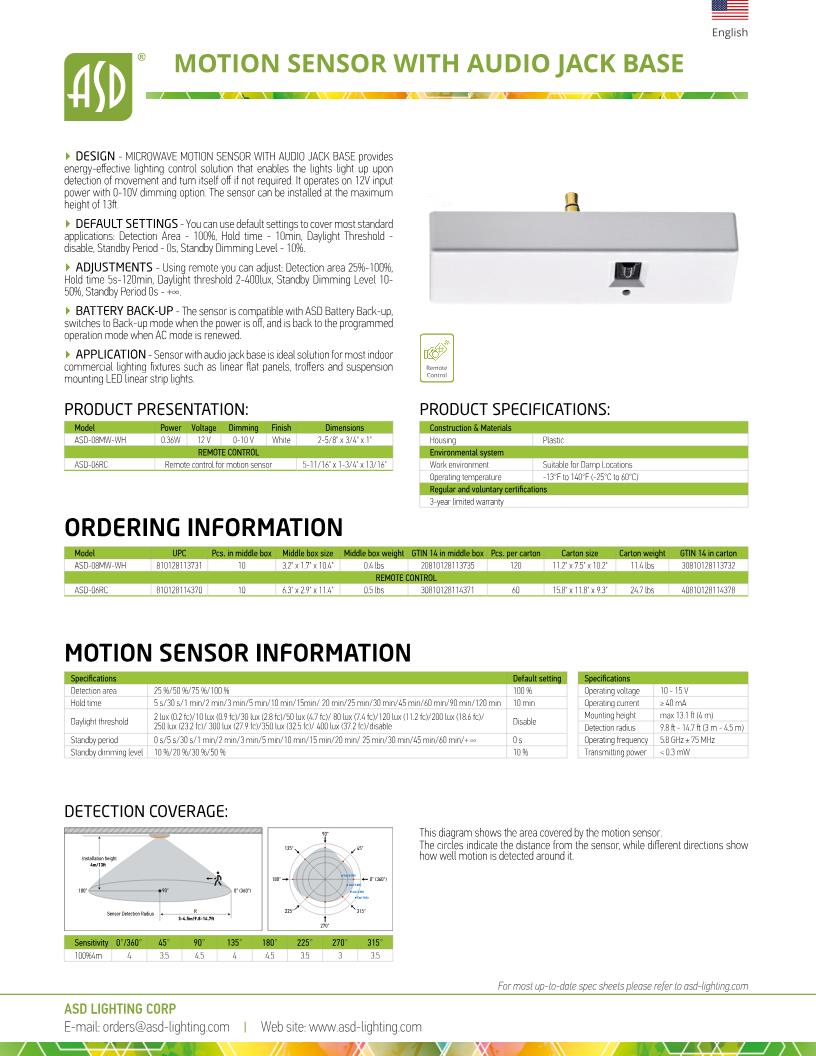

SENSORS 08 SERIES

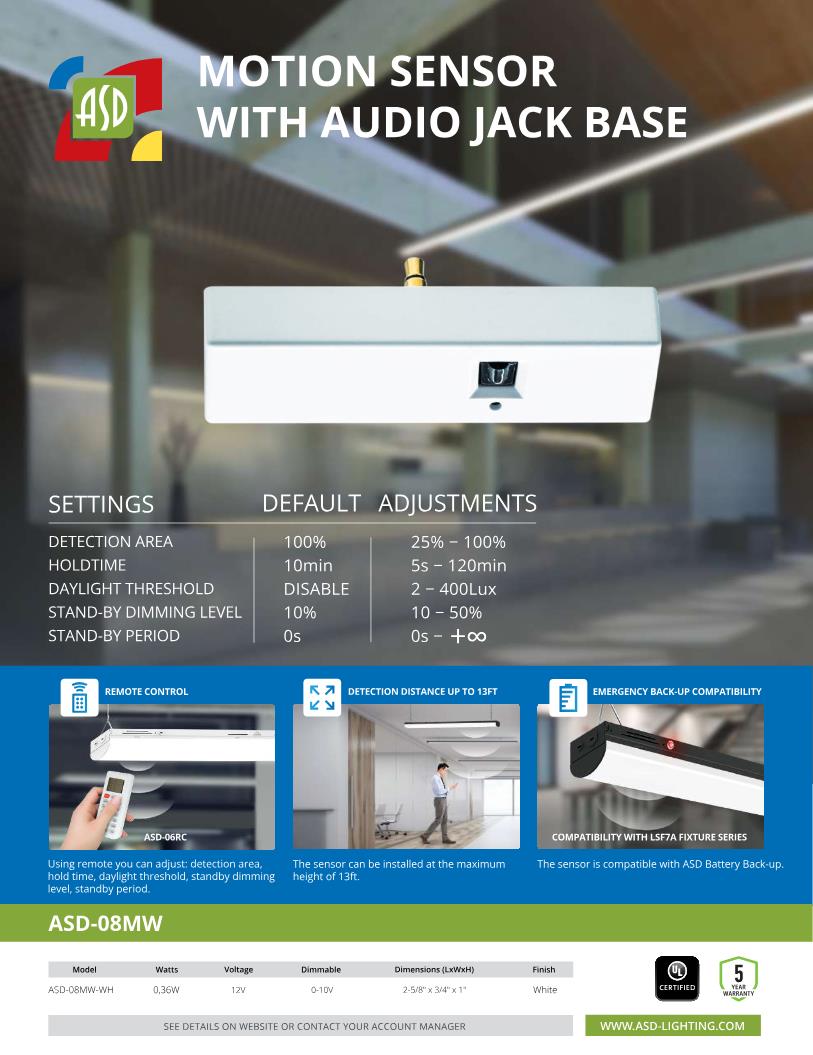

DESIGN. MICROWAVE MOTION SENSOR WITH AUDIO JACK BASE provides energy-effective lighting contol solution that enables the lights light up upon detection of movement and turn itself off if not required. It operates on 12V input power with 0-10V dimming option. The sensor can be installed at the maximum height of 13ft.

DEFAULT SETTINGS. You can use default settings to cover most standard applications: Detection Area - 100%, Holdtime - 10min, Daylight Threshold - disable, Standby Period - 0S, Standby Dimming Level - 10%

ADJUSTMENTS. Using remote you can adjust: Detection area 25%-100%, Holdtime 5s-120min, Daylight threshold 2-400Lux, Standby Dimming Level 10-50%, Standby Period 0s - +8

EMERGENCY BACK-UP. The sensor is compatible with ASD emergency Back-up, switches to Emergency mode when the power is off, and is back to the programmed operation mode when AC mode is renewed.

APPLICATION: Sensor with audio jack base is ideal solution for most indoor commercial lighting fixtures such as linear flat panels, troffers and suspension mounting LED linear strip lights.
