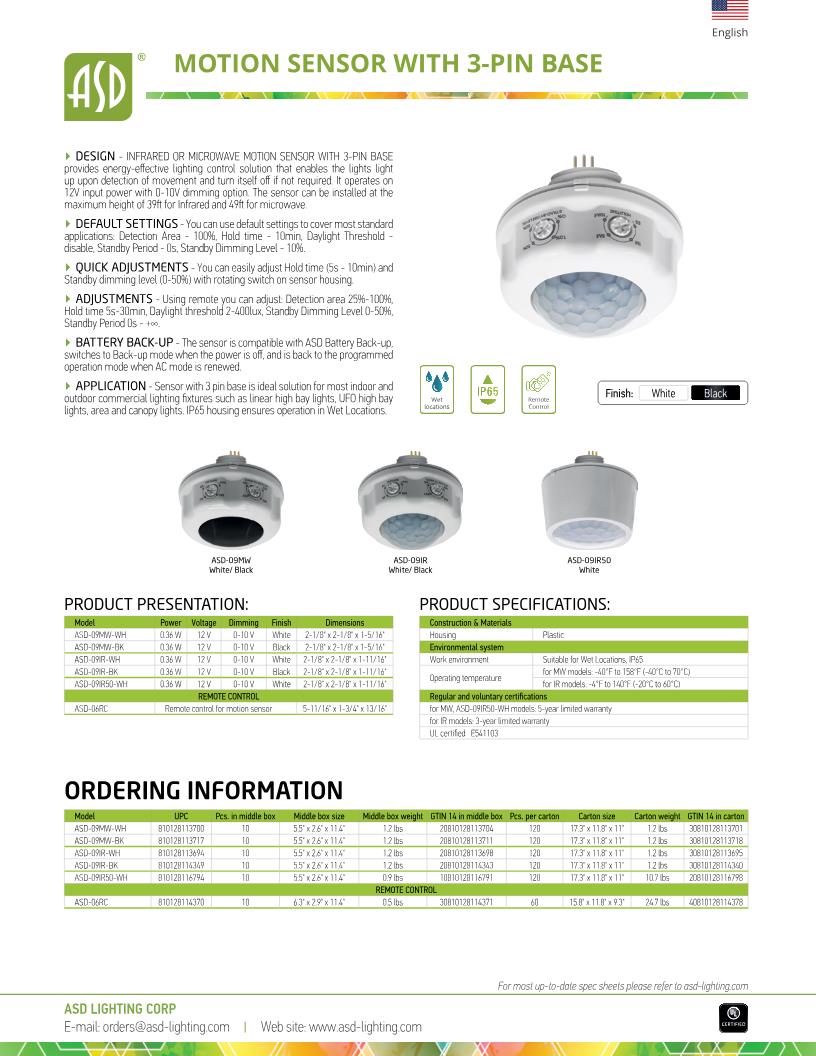

SENSORS 09 SERIES

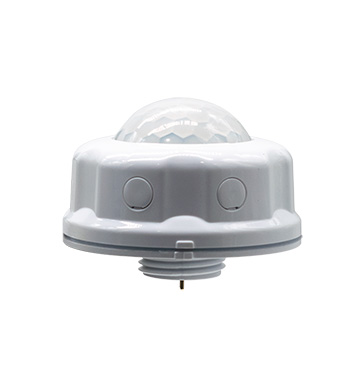

DESIGN. MOTION SENSOR WITH 3-PIN BASE provide energy-efficient lighting control by automatically turning lights on upon motion detection and off when no motion is detected. All models operate on 12V input power and support 0–10V dimming functionality. Installation height ranges from 39 to 50 feet, depending on the sensor type.

VARIETY. This series includes both infrared (IR) and microwave (MW) sensors, catering to diverse needs. Infrared models are ideal for close-range precision, while microwave options provide extended range and sensitivity.

DEFAULT SETTINGS. You can use default settings to cover most standard applications: Detection Area - 100%, Holdtime - 10min, Daylight Threshold - disable, Standby Period - 0S, Standby Dimming Level - 10%

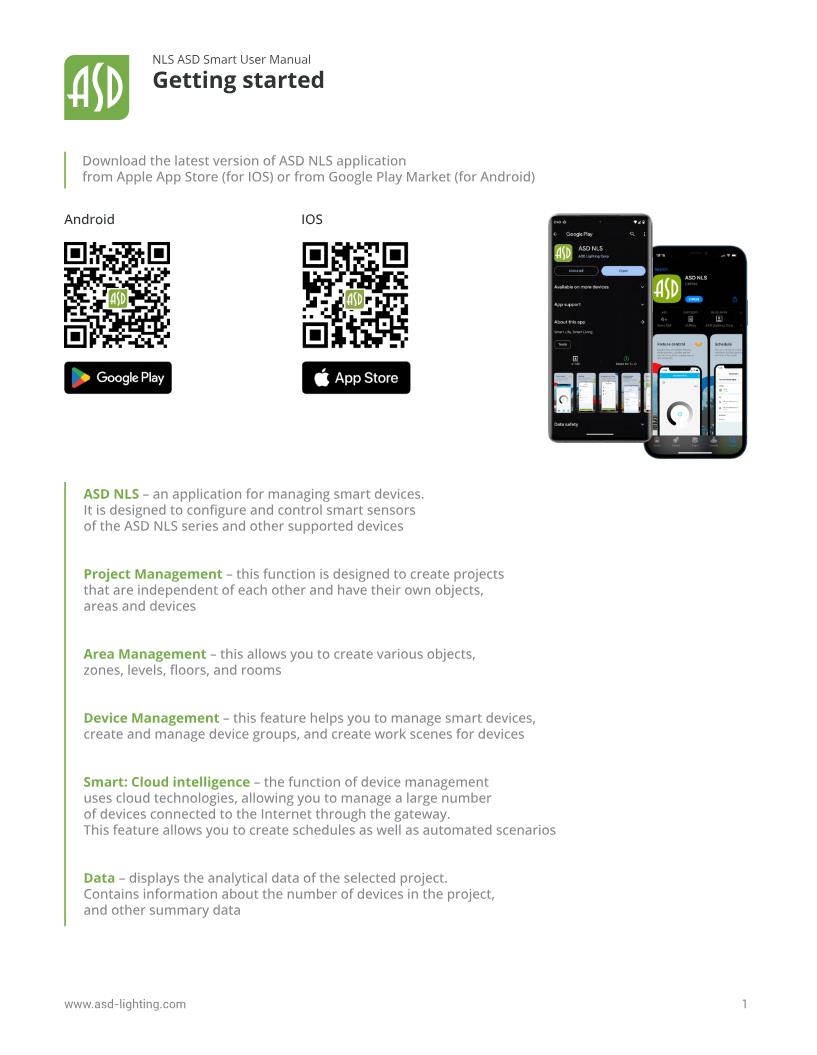

ASD Smart Control. Models with the NLS feature offer advanced management through the ASD mobile app. Using ASD NLS application for your smartphone or remote control you can adjust: Detection area 25%-100%, Holdtime 5s-30min, Daylight threshold 2-400Lux, Standby Dimming Level 0-50%, Standby Period 0s - +8. ASD NLS also allows grouping and schedule programming of the sensors, creating scenarios, different areas, monitoring energy consumption, and submitting maintenance requests.

EMERGENCY BACK-UP. The sensor is compatible with ASD emergency Back-up, switches to Emergency mode when the power is off, and is back to the programmed operation mode when AC mode is renewed.

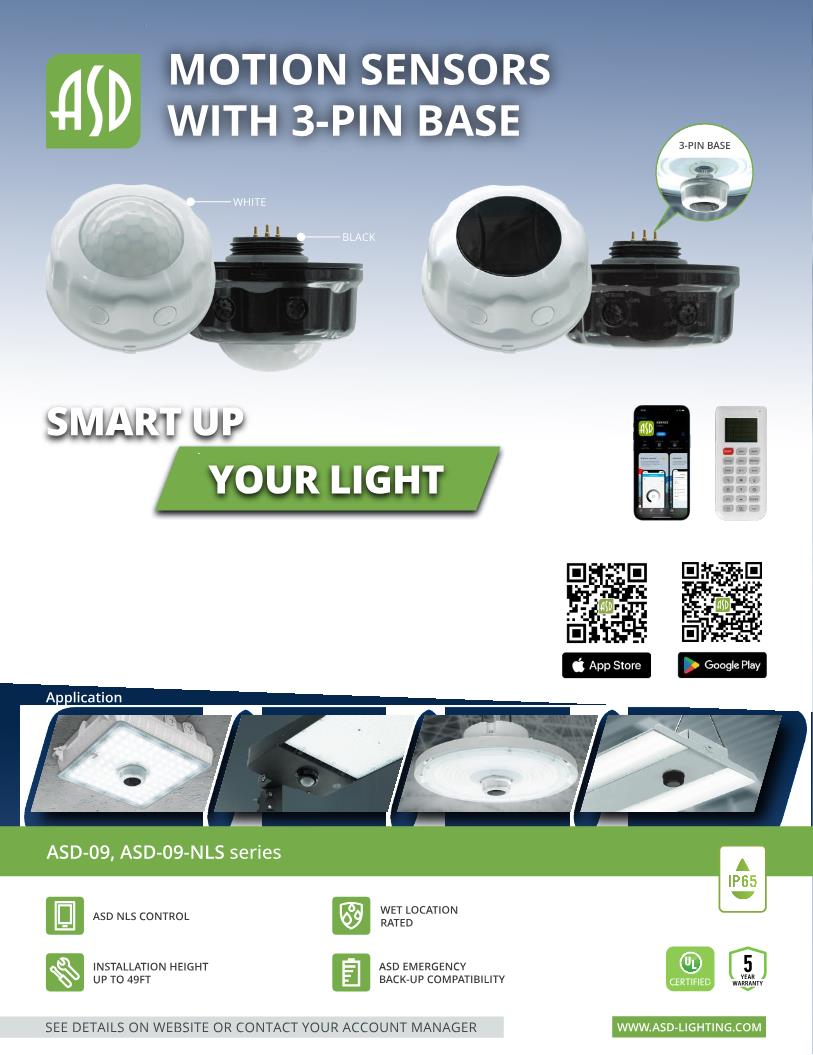

APPLICATION: Sensor with 3 pin base is ideal solution for most indoor and outdoor commercial lighting fixtures such as linear high bay lights, UFO high bay lights, area and canopy lights. IP65 housing ensures operation in wet locations.
