SENSORS 10 SERIES

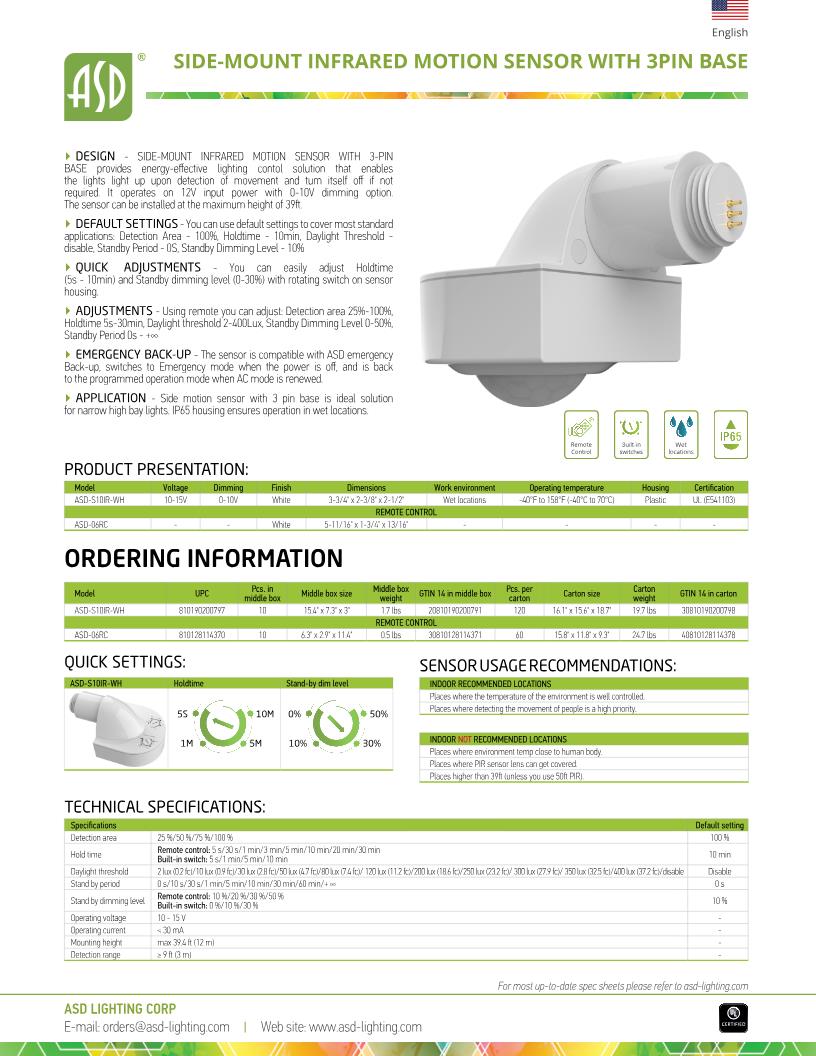

DESIGN. INFRARED SIDE MOTION SENSOR WITH 3-PIN BASE provides energy-effective lighting contol solution that enables the lights light up upon detection of movement and turn itself off if not required. It operates on 12V input power with 0-10V dimming option. The sensor can be installed at the maximum height of 39ft.

DEFAULT SETTINGS. You can use default settings to cover most standard applications: Detection Area - 100%, Holdtime - 10min, Daylight Threshold - disable, Standby Period - 0S, Standby Dimming Level - 10%

QUICK ADJUSTMENTS. You can easily adjust Holdtime (5s - 10min) and Standby dimming level (0-30%) with rotating switch on sensor housing. ADJUSTMENTS. Using remote you can adjust: Detection area 25%-100%, Holdtime 5s-30min, Daylight threshold 2-400Lux, Standby Dimming Level 0-50%, Standby Period 0s - +8

EMERGENCY BACK-UP. The sensor is compatible with ASD emergency Back-up, switches to Emergency mode when the power is off, and is back to the programmed operation mode when AC mode is renewed.

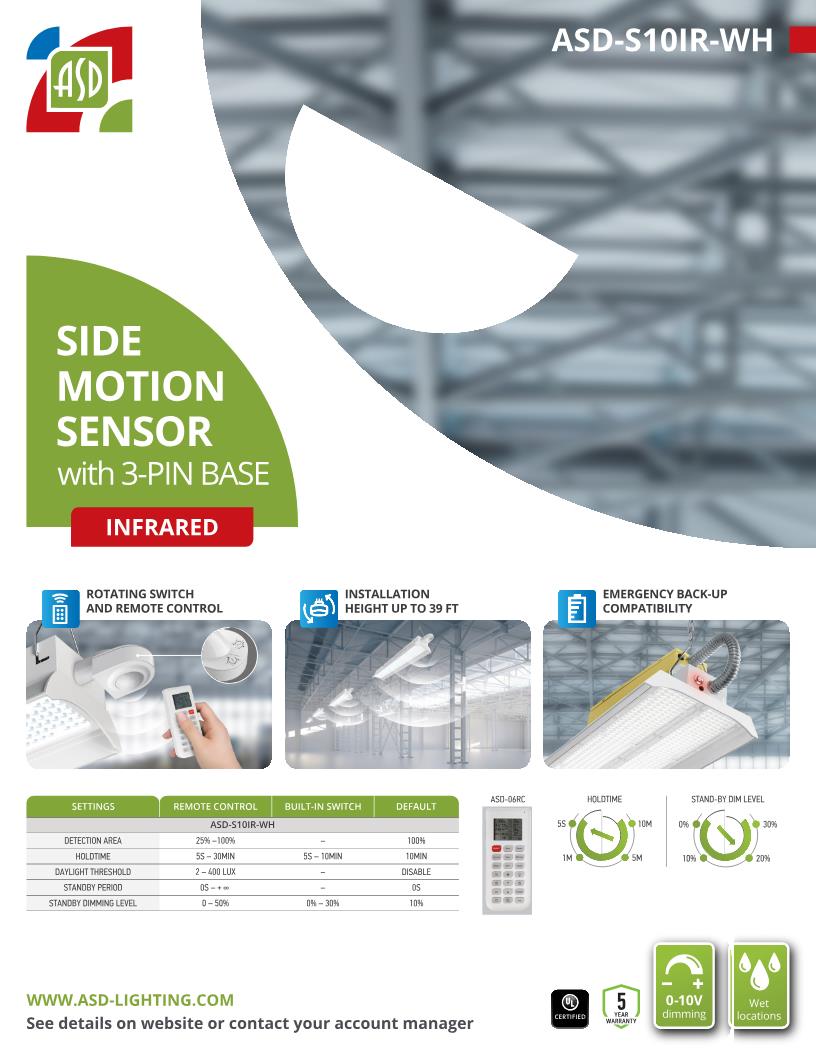

APPLICATION: Side motion sensor with 3 pin base is ideal solution for narrow high bay lights. IP65 housing ensures operation in wet locations.
