SENSORS 22 SERIES

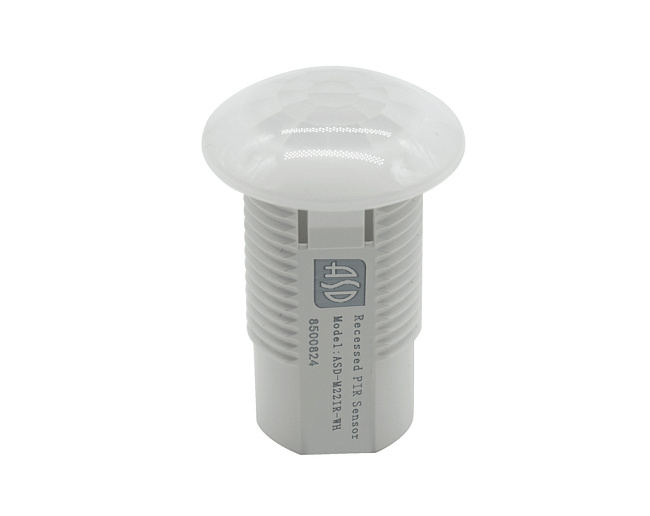

DESIGN. MOTION SENSOR WITH CLIP-IN-BASE provides energy-effective lighting contol solution that enables the lights light up upon detection of movement and turn itself off if not required. It operates on 12V input power with 0-10V dimming option. The sensor can be installed at the 13ft maximum.

"DEFAULT SETTINGS. You can use default settings to cover most standard applications: Detection Area - 100%, Holdtime - 10min, Daylight Threshold - disable, Standby Period - 0S, Standby Dimming Level - 10%"

ASD Smart Control. Using ASD NLS application for your smartphone you can adjust: Detection area 25%-100%, Holdtime 30s-60min, Daylight threshold 50-2000Lux, Standby Dimming Level 10-50%, Standby Period 0s - +8. ASD NLS also allows grouping and schedule programming of the sensors, creating scenarios, different areas, monitoring energy consumption, and submitting maintenance requests.

EMERGENCY BACK-UP. The sensor is compatible with ASD emergency Back-up, switches to Emergency mode when the power is off, and is back to the programmed operation mode when AC mode is renewed.

APPLICATION: Sensor with clip-in base is ideal solution for commercial LED linear strip lights.
