UBN

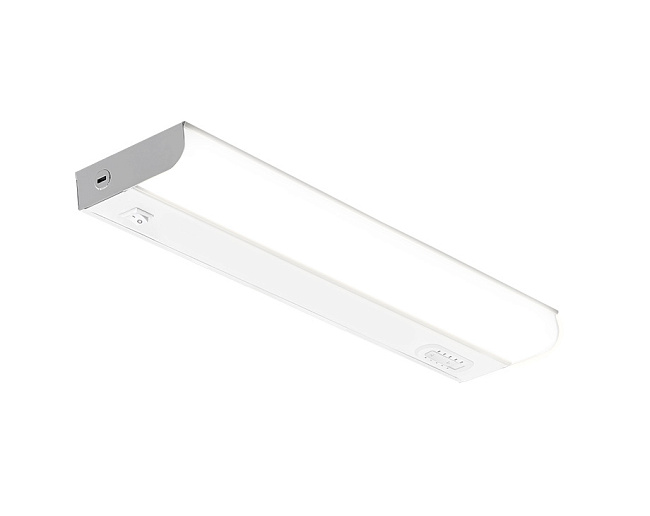

DESIGN. LED UNDER CABINET BULLNOSE LIGHT with ON/OFF switch is perfect for a hidden backlight. The fixture comes in 12-inch, 18-inch, 24-inch, 32-inch, 40-inch and 48-inch with voltage 120V and available in White and Bronze finishes. The acrylic lens with a 110° beam angle and CRI90+ grants you even light distribution.

COLOR SELECTABLE. You can choose either a 2700K soft white, 3000K warm white, 3500K neutral white, 4000K cool white, or 5000K daylight color temperature.

DIMMING. Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.

INSTALLATION. Quick and easy hardwired installation. It is also Damp Locations rated.

ADVANTAGES: With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL certification to guarantee top quality products and safety!

AVAILABLE FINISHES:

ON/OFF switch
5 color temperature options
CRI90+ Rich and natural colors
Quick and easy hardwired installation

Available
Power

5-24W

Color
temperature

5CCT

DOWNLOADS:

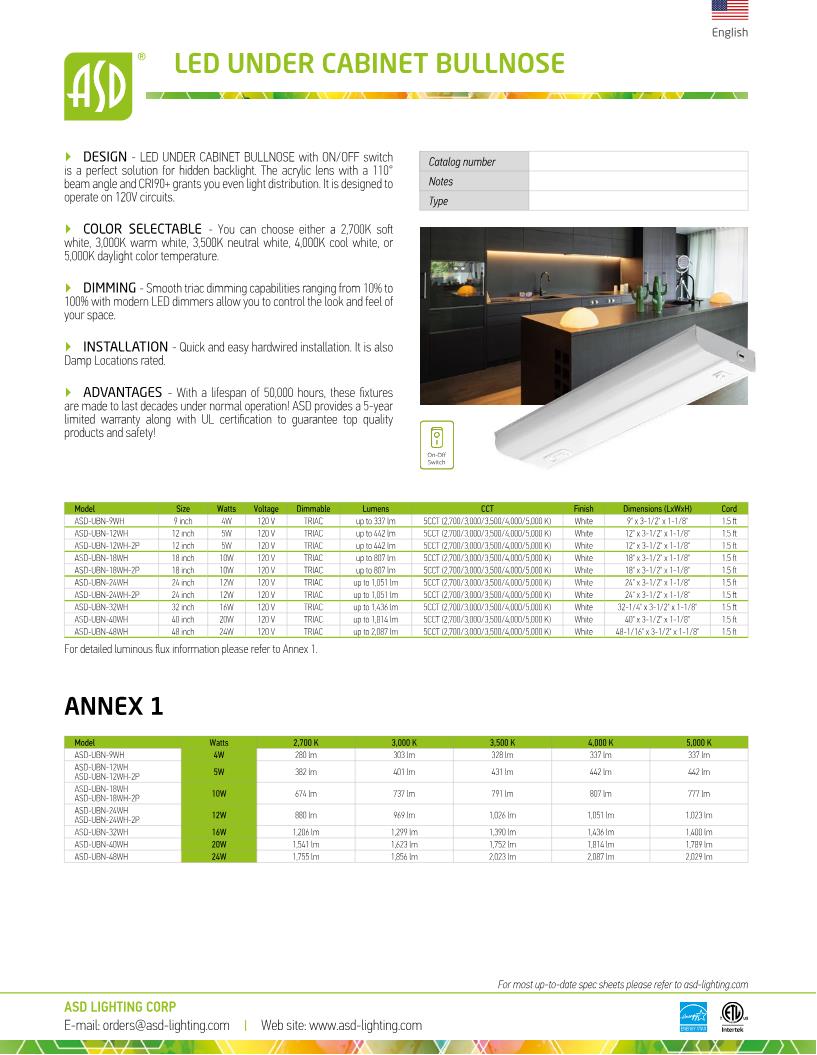

Cut Sheet

Product Flyer

5 year warranty

Finish

All

White

Bronze

Wattage

All

4

5

10

12

16

20

24

Voltage

All

120

ASD LED Under Cabinet Bullnose 9" 4W 120V Dimmable CCT Selectable 2700/3000/3500/4000/5000K Hardwired, On/Off Switch, White UL

ASD-UBN-9WH

UPC 81012811543
Certification UL
Finish White
Material Steel
Voltage 120
Power 4

Luminous Flux 280 / 303 / 328 / 337 / 327
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 9 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 12inch 5W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch White ETL

ASD-UBN-12WH

UPC 81012811534
Certification UL
Finish White
Material Steel
Voltage 120
Power 5

Luminous Flux 382 / 401 / 431 / 442 / 443
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 12 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 12inch 5W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch White ETL 2 pack

ASD-UBN-12WH-2P

UPC 81012811535
Certification UL
Finish White
Material Steel
Voltage 120
Power 5

Luminous Flux 382 / 401 / 431 / 442 / 443
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 12 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 18inch 10W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch White ETL

ASD-UBN-18WH

UPC 81012811536
Certification UL
Finish White
Material Steel
Voltage 120
Power 10

Luminous Flux 674 / 737 / 791 / 807 / 777
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 18 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 18inch 10W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch White ETL 2 pack

ASD-UBN-18WH-2P

UPC 81012811537
Certification UL
Finish White
Material Steel
Voltage 120
Power 10

Luminous Flux 674 / 737 / 791 / 807 / 777
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 18 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 24inch 12W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch White ETL

ASD-UBN-24WH

UPC 81012811538
Certification UL
Finish White
Material Steel
Voltage 120
Power 12

Luminous Flux 880 / 969 / 1026 / 1051 / 1023
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 24 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 24inch 12W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch White ETL 2 pack

ASD-UBN-24WH-2P

UPC 81012811539
Certification UL
Finish White
Material Steel
Voltage 120
Power 12

Luminous Flux 880 / 969 / 1026 / 1051 / 1023
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 24 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 32inch 16W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch White ETL

ASD-UBN-32WH

UPC 81012811540
Certification UL
Finish White
Material Steel
Voltage 120
Power 16

Luminous Flux 1206 / 1299 / 1390 / 1436 / 1400
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 32 1/4 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 40inch 20W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch White ETL

ASD-UBN-40WH

UPC 81012811541
Certification UL
Finish White
Material Steel
Voltage 120
Power 20

Luminous Flux 1541 / 1623 / 1752 / 1814 / 1789
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 40 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 48inch 24W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch White ETL

ASD-UBN-48WH

UPC 81012811542
Certification UL
Finish White
Material Steel
Voltage 120
Power 24

Luminous Flux 1755 / 1856 / 2023 / 2087 / 2029
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 48 1/16 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 12inch 5W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch Bronze ETL

ASD-UBN-12BR

UPC 81012811779
Certification UL
Finish Bronze
Material Steel
Voltage 120
Power 5

Luminous Flux 382 / 401 / 431 / 442 / 443
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 12 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 18inch 10W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch Bronze ETL

ASD-UBN-18BR

UPC 81012811780
Certification UL
Finish Bronze
Material Steel
Voltage 120
Power 10

Luminous Flux 674 / 737 / 791 / 807 / 777
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 18 x 1 1/8

Downloads

IES

ASD LED Under Cabinet Bullnose 24inch 12W 120V Triac 2700/3000/3500/4000/5000K Hardwired with ON/OFF Switch Bronze ETL

ASD-UBN-24BR

UPC 81012811781
Certification UL
Finish Bronze
Material Steel
Voltage 120
Power 12

Luminous Flux 880 / 969 / 1026 / 1051 / 1023
Dimming Y
Color Temperature 2700/3000/3500/4000/5000
Location Damp
Warranty 5
Dimensions DxH 3 1/2 x 24 x 1 1/8

Downloads

IES
