UCL

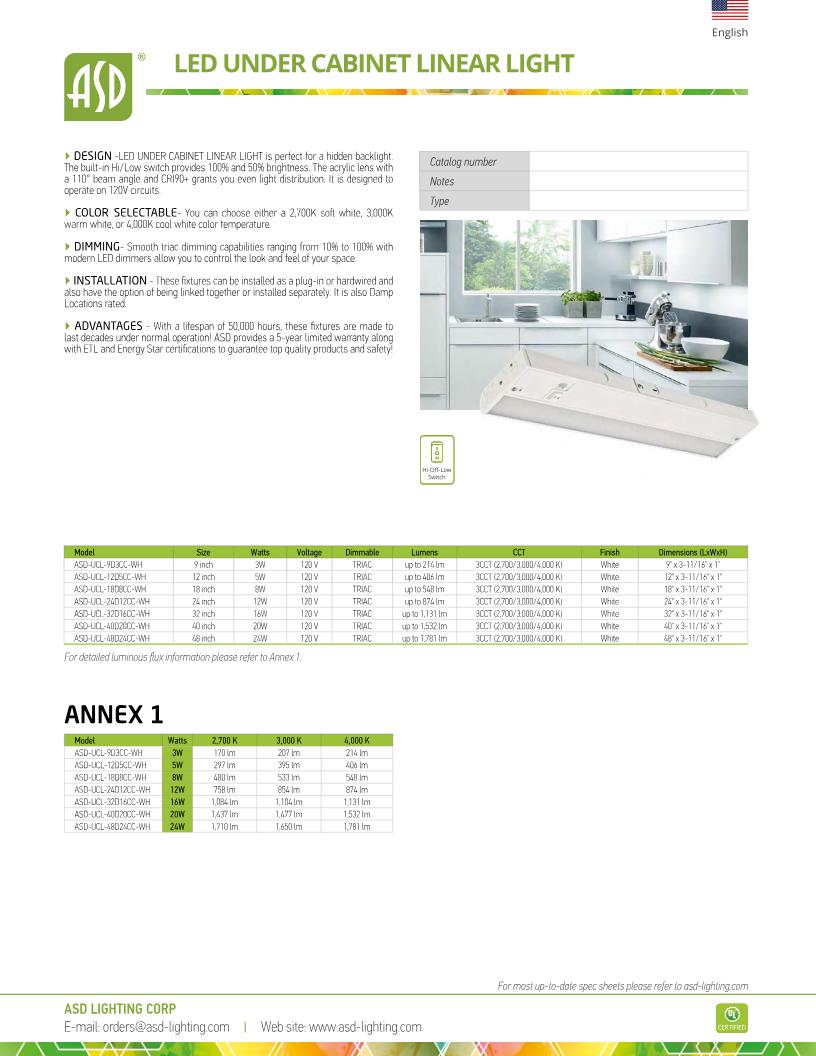

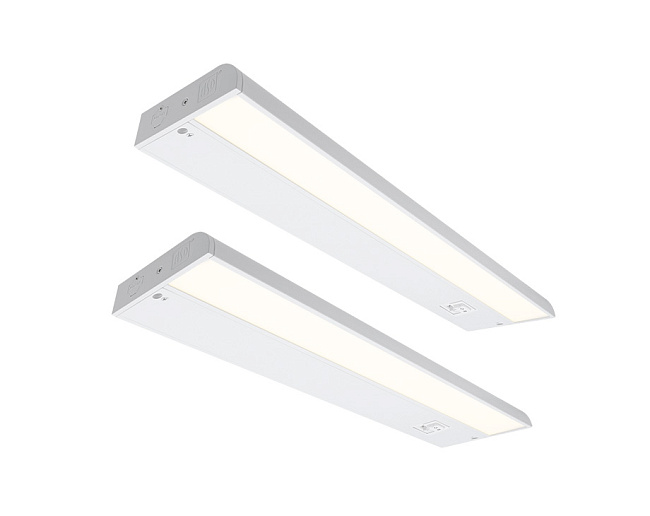

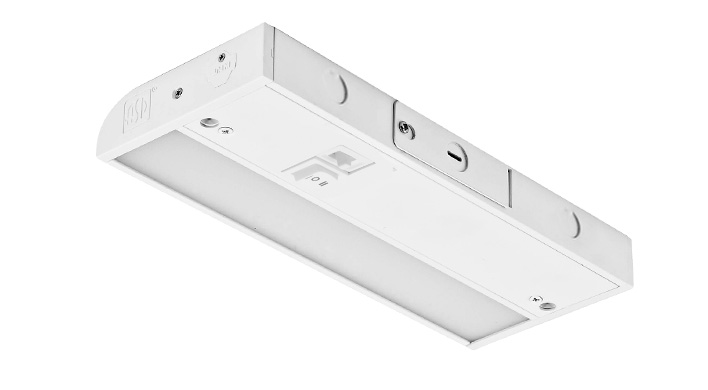

DESIGN. LED UNDER CABINET LINEAR LIGHT is perfect for a hidden backlight. The fixture comes in 12-inch, 18-inch, 24-inch, 32-inch, 40-inch and 48-inch with voltage 120V and available in White finish. The built-in Hi/Low switch provides 100% and 50% brightness. The acrylic lens with a 110° beam angle and CRI90+ grants you even light distribution.
COLOR SELECTABLE. You can choose either a 2700K soft white, 3000K warm white, or 4000K cool white color temperature.
DIMMING. Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.
INSTALLATION. These fixtures can be installed as a plug-in or hardwired and also have the option of being linked together or installed separately. It is also Damp Locations rated.
ADVANTAGES: With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL certification to guarantee top quality products and safety!
- Hi/Lo switch provides 100% and 50% brightness levels
- CRI90+ Rich and natural colors
- 3 color temperature options
- Quick and easy hardwire and plug-in installation
Power
temperature
- Finish
- White
- Voltage
- 120
- Power
- 5
- Luminous Flux
- 297 / 395 / 406
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 4000
- Finish
- White
- Voltage
- 120
- Power
- 8
- Luminous Flux
- 480 / 533 / 548
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 4000
- Finish
- White
- Voltage
- 120
- Power
- 12
- Luminous Flux
- 840 / 854 / 874
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 4000
- Finish
- White
- Voltage
- 120
- Power
- 16
- Luminous Flux
- 1089 / 1104 / 1131
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 4000
- Finish
- White
- Voltage
- 120
- Power
- 20
- Luminous Flux
- 1479 / 1477 / 1532
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 4000
- Finish
- White
- Voltage
- 120
- Power
- 24
- Luminous Flux
- 1622 / 1650 / 1781
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 4000
- Finish
- White
- Voltage
- 120
- Power
- 3
- Luminous Flux
- 202 / 207 / 214
- Dimming
- Y
- Color Temperature
- 2700 / 3000 / 4000
- UPC 81005073420
- Certification ETL / UL
- Finish White
- Material Aluminum, Plastic
- Voltage 120
- Power 5
- Luminous Flux 297 / 395 / 406
- Dimming Y
- Color Temperature 2700/3000/4000
- Location Damp
- IP IP20
- Warranty 5
- Dimensions DxH 3 11/16 x 12 x 1

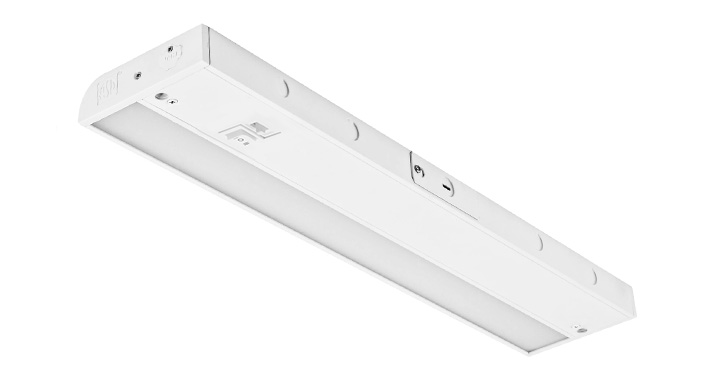

- UPC 81005073422
- Certification ETL / UL
- Finish White
- Material Aluminum, Plastic
- Voltage 120
- Power 8
- Luminous Flux 480 / 533 / 548
- Dimming Y
- Color Temperature 2700/3000/4000
- Location Damp
- IP IP20
- Warranty 5
- Dimensions DxH 3 11/16 x 18 x 1

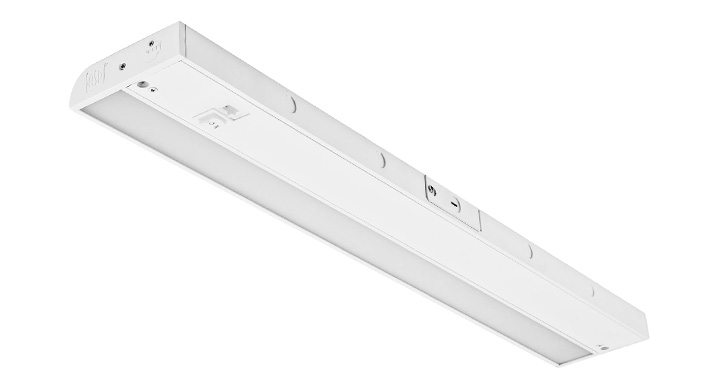

- UPC 81005073424
- Certification ETL / UL
- Finish White
- Material Aluminum, Plastic
- Voltage 120
- Power 12
- Luminous Flux 840 / 854 / 874
- Dimming Y
- Color Temperature 2700/3000/4000
- Location Damp
- IP IP20
- Warranty 5
- Dimensions DxH 3 11/16 x 24 x 1

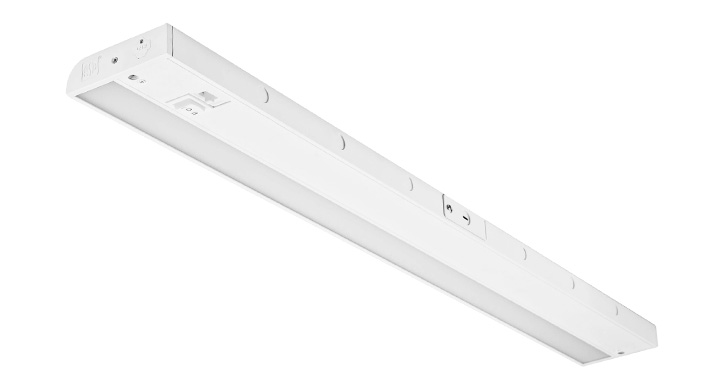

- UPC 81005073426
- Certification ETL / UL
- Finish White
- Material Aluminum, Plastic
- Voltage 120
- Power 16
- Luminous Flux 1089 / 1104 / 1131
- Dimming Y
- Color Temperature 2700/3000/4000
- Location Damp
- IP IP20
- Warranty 5
- Dimensions DxH 3 11/16 x 32 x 1

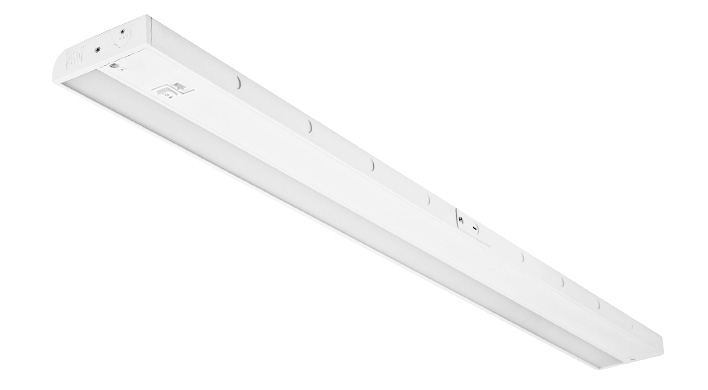

- UPC 81005073427
- Certification ETL / UL
- Finish White
- Material Aluminum, Plastic
- Voltage 120
- Power 20
- Luminous Flux 1479 / 1477 / 1532
- Dimming Y
- Color Temperature 2700/3000/4000
- Location Damp
- IP IP20
- Warranty 5
- Dimensions DxH 3 11/16 x 40 x 1

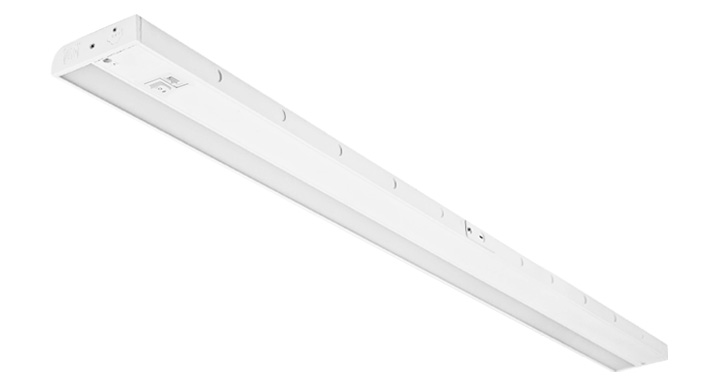

- UPC 81005073428
- Certification ETL / UL
- Finish White
- Material Aluminum, Plastic
- Voltage 120
- Power 24
- Luminous Flux 1622 / 1650 / 1781
- Dimming Y
- Color Temperature 2700/3000/4000
- Location Damp
- IP IP20
- Warranty 5
- Dimensions DxH 3 11/16 x 48 x 1
- UPC 81005073419
- Certification ETL
- Finish White
- Material Aluminum, Plastic
- Voltage 120
- Power 3
- Luminous Flux 202 / 207 / 214
- Dimming Y
- Color Temperature 2700/3000/4000
- Location Damp
- IP IP20
- Warranty 5
- Dimensions DxH 3 11/16 x 9 x 1
