WHB5A D

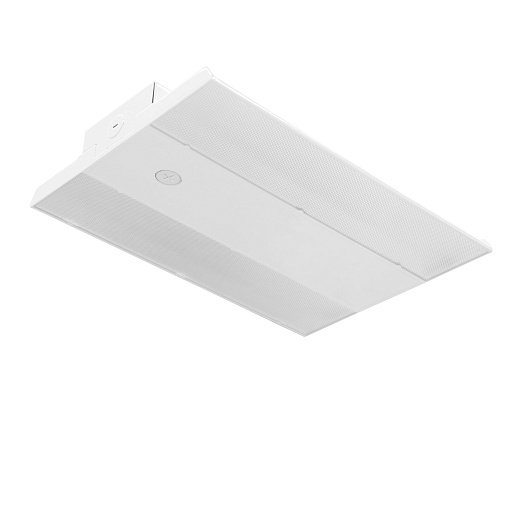

DESIGN & OPTIONS. Q-BASE LED LINEAR HIGH BAY with built-in motion sensor base is designed with die-cast aluminum housing to provide excellent heat dissipation and an extended lifetime. The antiglare PC frosted lens is impact-resistant and extremely tough. It comes with a 0-10V dimmable driver and the optional EM back-up provides 90 minutes of power in case of emergency. These fixtures run on 120-277V circuits, and come in a 5000K color temperature with a WHITE finish.

INSTALLATION. These fixtures have three different mounting options: suspended, surface, and pendant. They can easily be suspended using the included chains and V-hook. Surface and pendant mount brackets are also available (sold separately). Refer to install instructions for detailed steps.

APPLICATION. Q-BASE LED LINEAR HIGH BAYS are the perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, garages, general task areas, and many other applications. This fixture is also Damp Location rated and can operate in temperatures ranging from -40 to 122°F (-40 to 50°C), allowing it to be utilized in a wide variety of applications and climates.

ENERGY SAVINGS & EFFICIENCY. With a calculated lifespan up to 187,000 hours, these fixtures are made to last decades under normal operation! This fixture can cut your electric bill by up to 80% instantly and will save you a significant amount of money in its lifetime.

CERTIFICATION & WARRANTY. Buy with confidence: ASD provides a 5-year limited warranty along with UL certification to guarantee top quality products and safety! DLC Premium classification allows participation in rebates; please check the rebate programs available in your state.
