WHB5B-ST

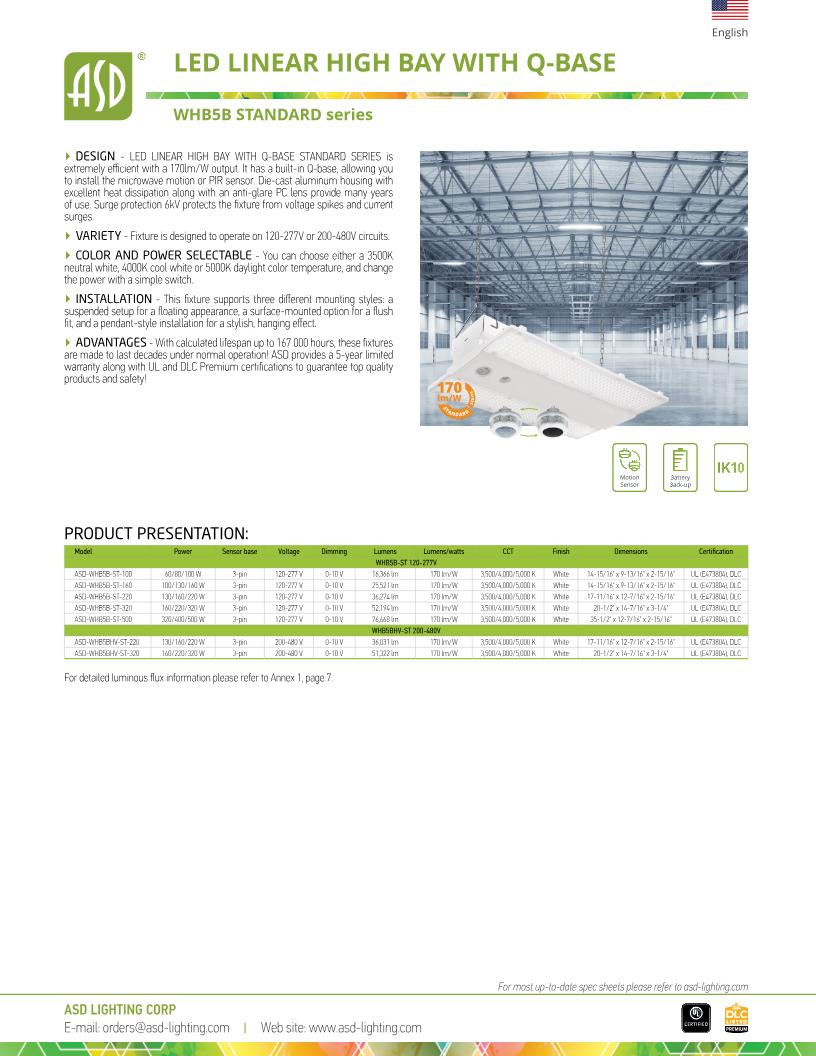

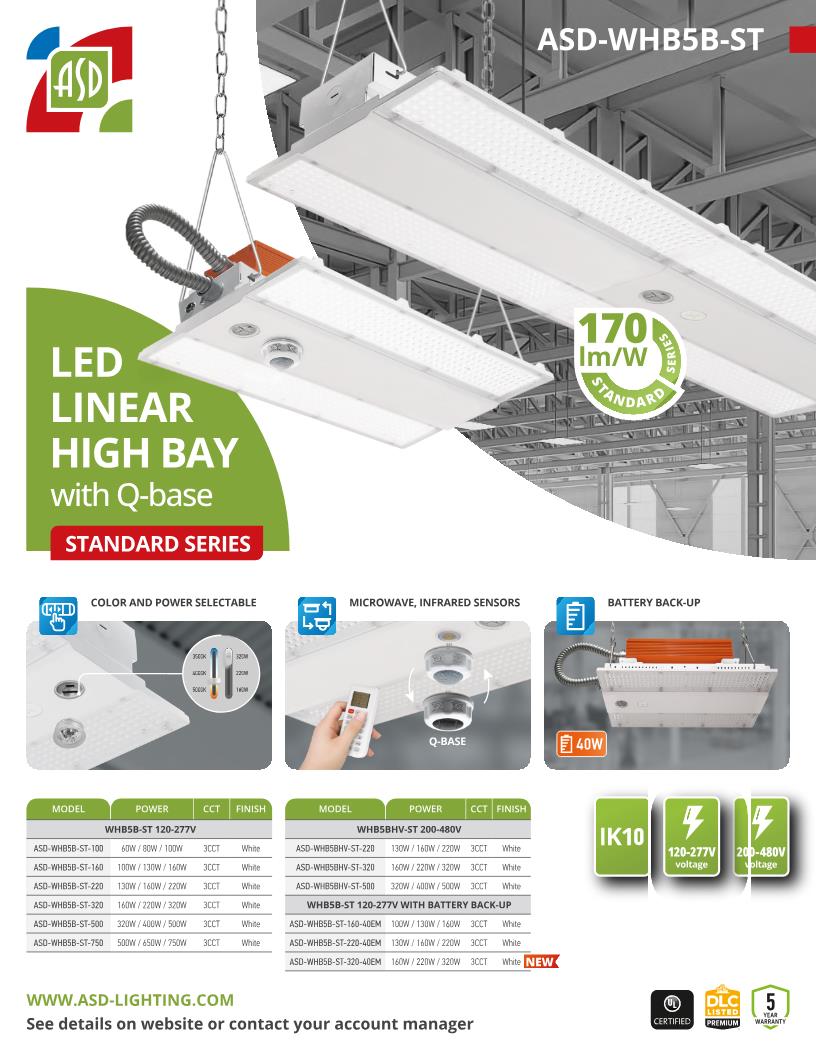

DESIGN. LED LINEAR HIGH BAY WITH Q-BASE STANDARD SERIES is highly efficient with a 170lm/W output. It has a built-in Q-base, allowing you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. Surge protection 6kV protects the fixture from voltage spikes and current surges.

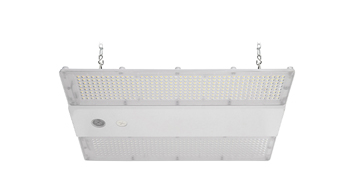

VARIETY. Fixture is designed to operate on 120-277V or 200-480V circuits.

COLOR AND POWER SELECTABLE. You can choose either a 3500K neutral white, 4000K cool white or 5000K daylight color temperature, and change the power with a simple switch.

INSTALLATION. This fixture supports three different mounting styles: a suspended setup for a floating appearance, a surface-mounted option for a flush fit, and a pendant-style installation for a stylish, hanging effect.

ADVANTAGES: With calculated lifespan up to 167 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

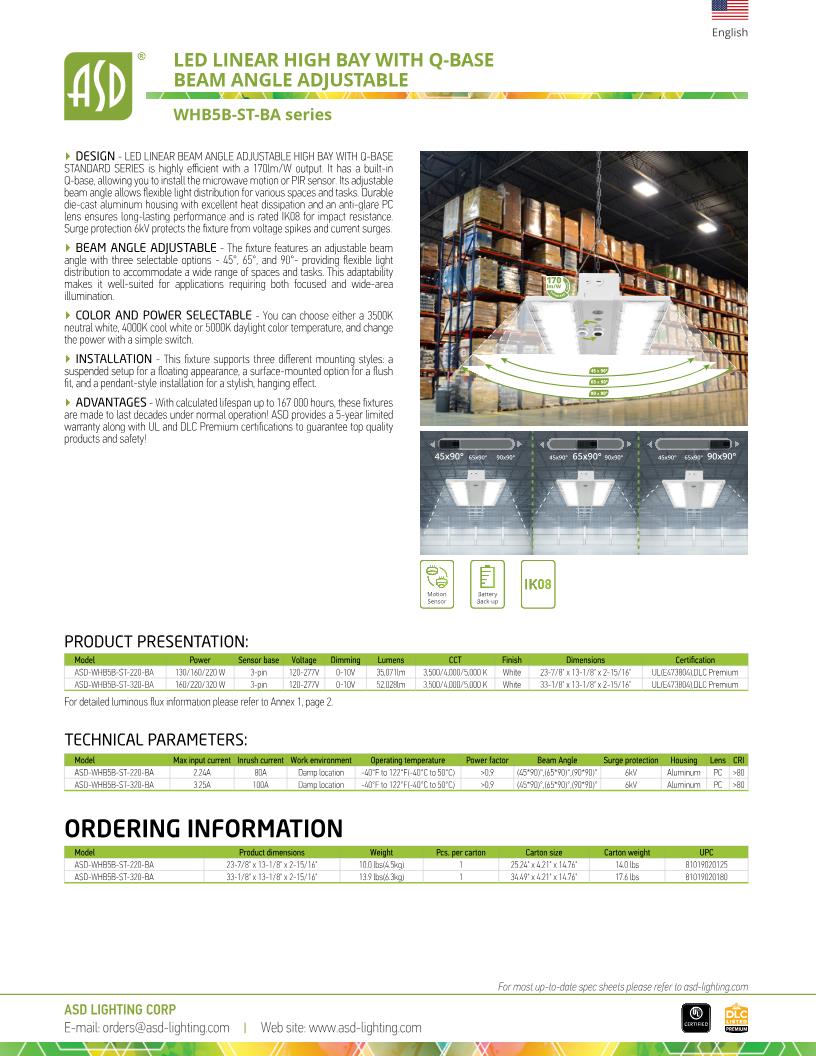

BEAM ANGLE ADJUSTABLE. The fixture features an adjustable beam angle with three selectable options—45°, 60°, and 90°—providing flexible light distribution to accommodate a wide range of spaces and tasks. This adaptability makes it well-suited for applications requiring both focused and wide-area illumination.

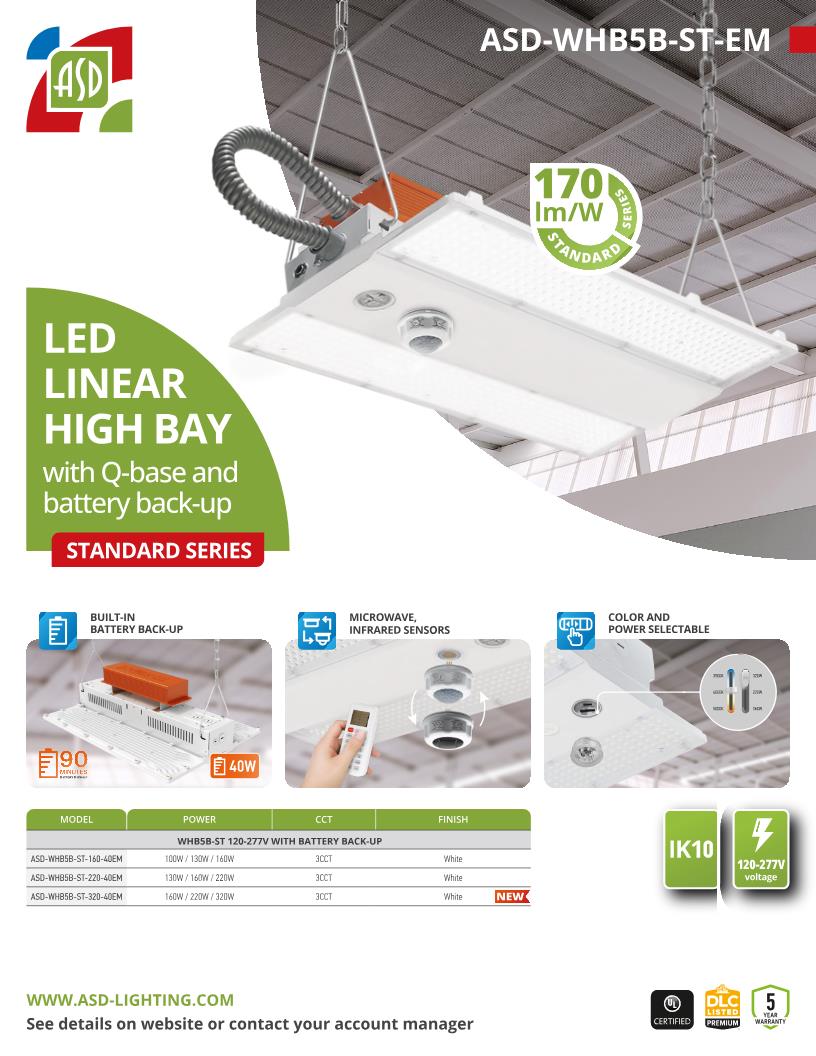

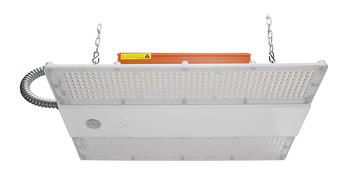

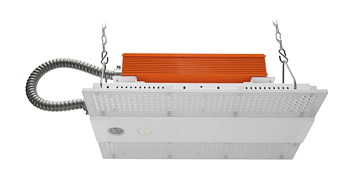

MODELS WITH BATTERY BACK-UP. The built-in battery back-up provide 90 minutes of power in case of emergency.

MODEL WITH 10FT CORD WITH NEMA L7-15P PLUG. This fixture ncludes a 10-foot cord with NEMA L7-15 plug, which allows for quick and easy installation.
