WLS

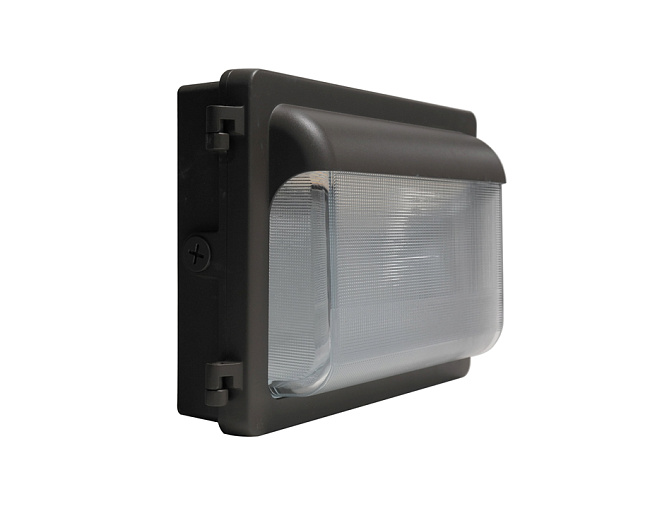

DESIGN. LED SLIM WALLPACK has a die-cast aluminum housing with excellent heat dissipation, tempered glass lens to protect the LED chips and provide high illuminance, and anti-leakage silicone gaskets. It is designed to operate on 120-277V circuits with a 0-10V dimmable driver.

Slim housing provides a nice design with superior illumination.

Surge protection 6kV protects the fixture from voltage spikes and current surges.

INSTALLATION. The fixture can be mounted to a junction box or directly to a wall. Perfect commercial or industrial solution for outdoor security lighting, wall perimeter lighting, garages, large backyards, warehouses, hotels, and many other applications. It is also Wet Locations rated.

ADVANTAGES: With calculated lifespan up to 145 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

AVAILABLE FINISHES:
  • Die-cast aluminum slim housing with excellent heat dissipation
  • Tempered glass lens for high illuminance
  • Removable hinge door for quick and easy wiring
  • Surge protection against voltage and current surges
Available
Power
50-120W
Color
temperature
3CCT
UL DLC 5 year warranty
Finish
All
Bronze
Wattage
All
30 / 40 / 50
40 / 50 / 60
60 / 70 / 80
80 / 100 / 120
Voltage
All
120-277
