BATTERY BACK-UPS FOR UHBS

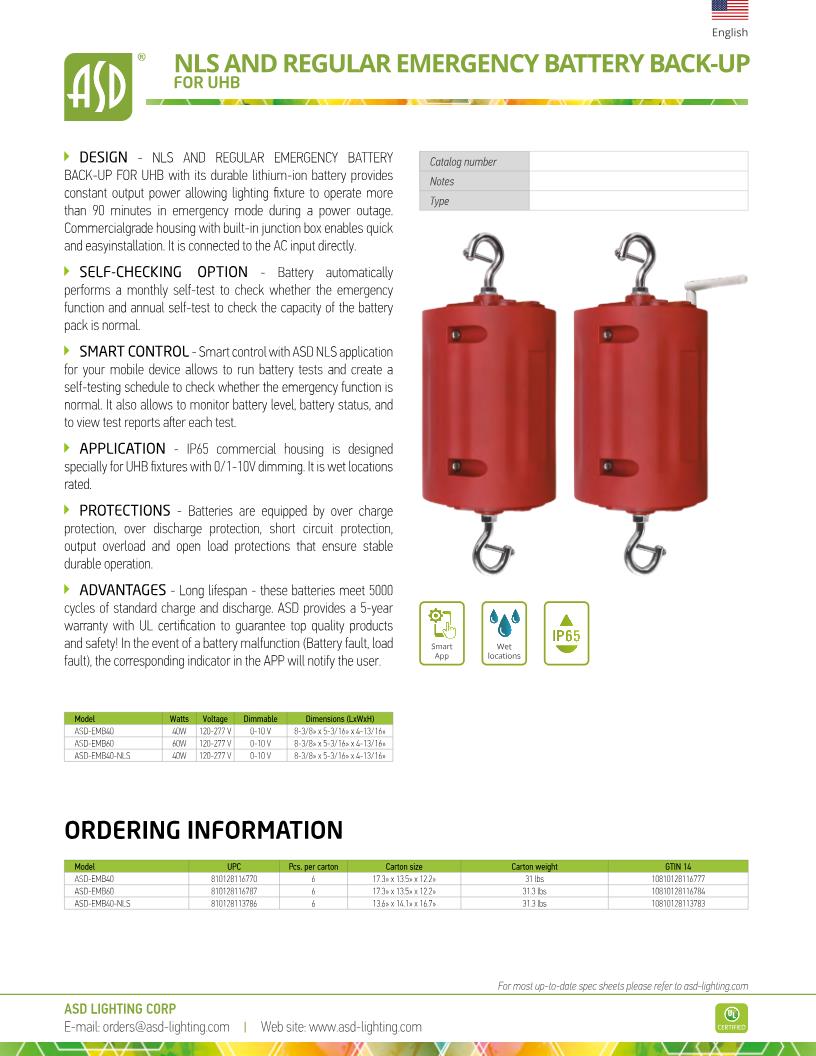

DESIGN. NLS AND REGULAR EMERGENCY BATTERY BACK-UP FOR UHB with its durable lithium-ion battery provides constant output power allowing lighting fixture to operate more than 90 minutes in emergency mode during a power outage. Commercial grade housing with built-in junction box enables quick and easy installation. It is connected to the AC input directly.

SELF-CHECKING OPTION. Battery automatically performs a monthly self-test to check whether the emergency function and annual self-test to check the capacity of the battery pack is normal.

SMART CONTROL. Smart control with ASD NLS application for your mobile device allows to run battery tests and create a self-testing schedule to check whether the emergency function is normal. It also allows to monitor battery level, battery status, and to view test reports after each test.

APPLICATION. IP65 commercial housing is designed specially for UHB fixtures with 0/1-10V dimming. It is wet locations rated.

PROTECTIONS. Batteries are equipped by over charge protection, over discharge protection, short circuit protection, output overload and open load protections that ensure stable durable operation.

ADVANTAGES: Long lifespan - these batteries meet 5000 cycles of standard charge and discharge. ASD provides a 5-year warranty with UL certification to guarantee top quality products and safety! In the event of a battery malfunction (Battery fault, load fault), the corresponding indicator in the App will notify the user.
